Joint hose installation note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

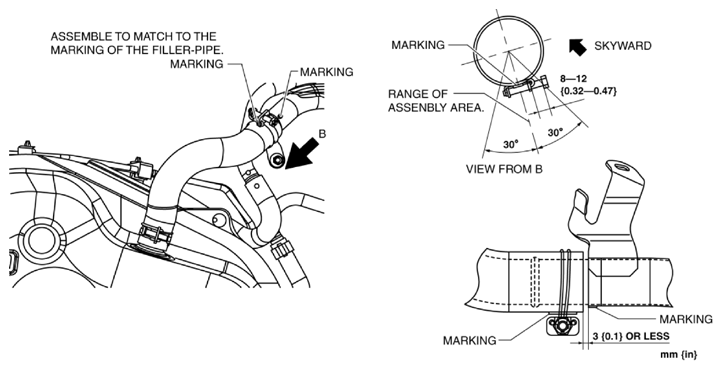

  1. Install the joint hose as shown in the figure.
Fig 1: Identifying Joint Hose Installation Dimension
G10916339Courtesy of MAZDA MOTORS CORP.
