Joint hose installation note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the joint hose as shown in the figure.

Fuel tank side

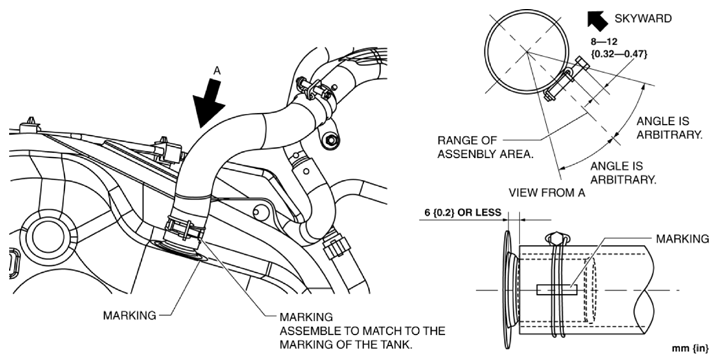

Fig 1: Identifying Joint Hose Installation Dimension - Fuel Tank Side

Courtesy of MAZDA MOTORS CORP.

Fuel-filter pipe side

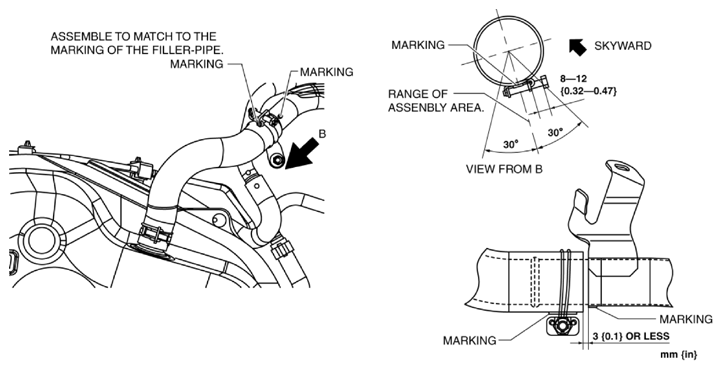

Fig 2: Identifying Joint Hose Installation Dimension - Fuel-Filter Pipe Side

Courtesy of MAZDA MOTORS CORP.
