Teflon Seal Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When stretching the teflon seal, do not damage the fuel injector with the tool.

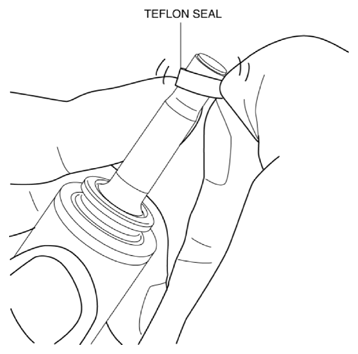

Stretch the teflon seal as shown in the figure.

Fig 1: Stretching Teflon Seal
Courtesy of MAZDA MOTORS CORP.

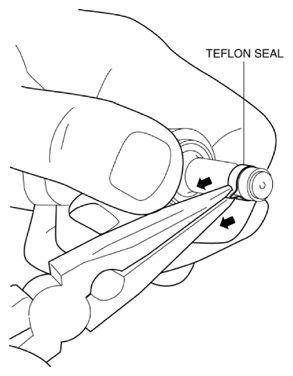

Remove the teflon seal as shown in the figure.

Fig 2: Removing Teflon Seal

Courtesy of MAZDA MOTORS CORP.
