Magnetic Clutch Inspection (Manual A/C)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.

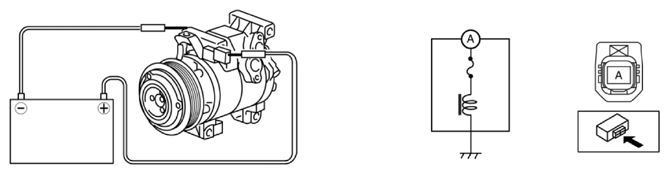

    Fig 1: Connecting Battery To Terminal Of Magnetic Clutch And Ground To A/C Compressor Body
    G10937651Courtesy of MAZDA MOTORS CORP.
  2. Verify that the magnetic clutch operates.
    • If there is any malfunction, replace the magnetic clutch.
