Snap Ring Removal/Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove/install the snap ring using a snap ring pliers.

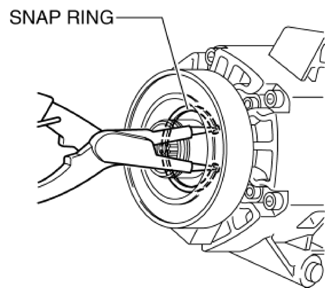

    Fig 1: Removing Snap Ring Using Snap Ring Pliers
    G10937643Courtesy of MAZDA MOTORS CORP.
