Airflow Mode Actuator Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the airflow mode main link and the airflow mode sub link projection as shown in the figure.

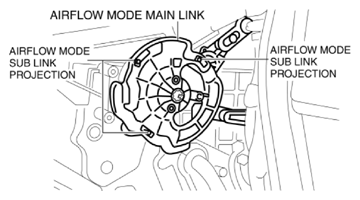

    Fig 1: Identifying Airflow Mode Main Link And Airflow Mode Sub Link Projection
    G10937617Courtesy of MAZDA MOTORS CORP.
  2. When lightly pressing the airflow main link to rotate it in the direction of the arrow, verify that the airflow mode door switches to the position for each mode.

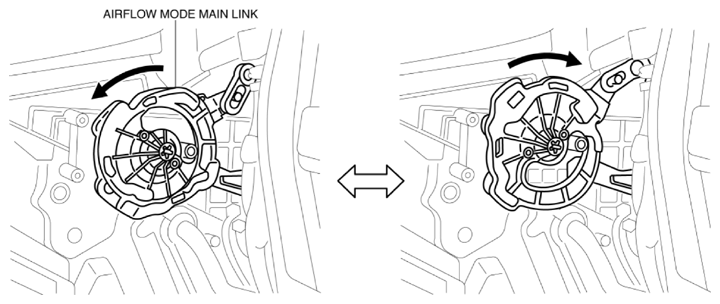

    Fig 2: Rotating Airflow Main Link
    G10937618Courtesy of MAZDA MOTORS CORP.
  3. Align the airflow mode main link installation hole with the shape of the airflow mode actuator shaft, and install while holding the airflow mode main link.

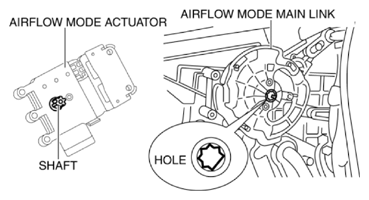

Fig 3: Identifying Airflow Mode Main Link, Airflow Mode Actuator, Hose And Shaft
G10937619Courtesy of MAZDA MOTORS CORP.

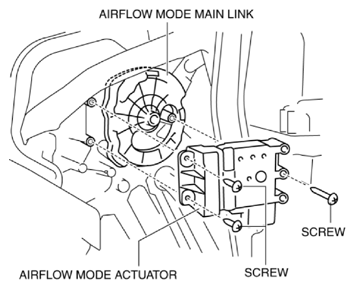

Fig 4: Identifying Airflow Mode Main Link, Airflow Mode Actuator And Screws
G10937620Courtesy of MAZDA MOTORS CORP.
