Oil Pump Driven Sprocket Removal Note (SKYACTIV-G 2.5)
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

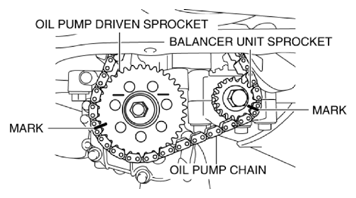

- Mark the following parts as shown in the figure.
- Oil pump driven sprocket
- Oil pump chain
- Balancer unit sprocket
Courtesy of MAZDA MOTORS CORP.
NOTE:- The marks will be used as alignment marks when installing the oil pump driven sprocket.

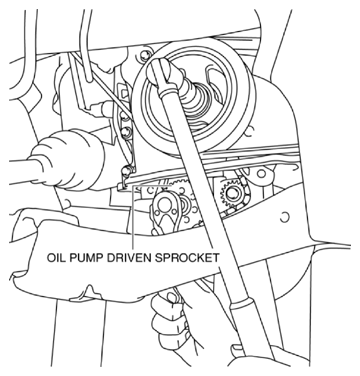

- While locking the oil pump against rotation as shown in the figure, remove the oil pump driven sprocket installation bolt.

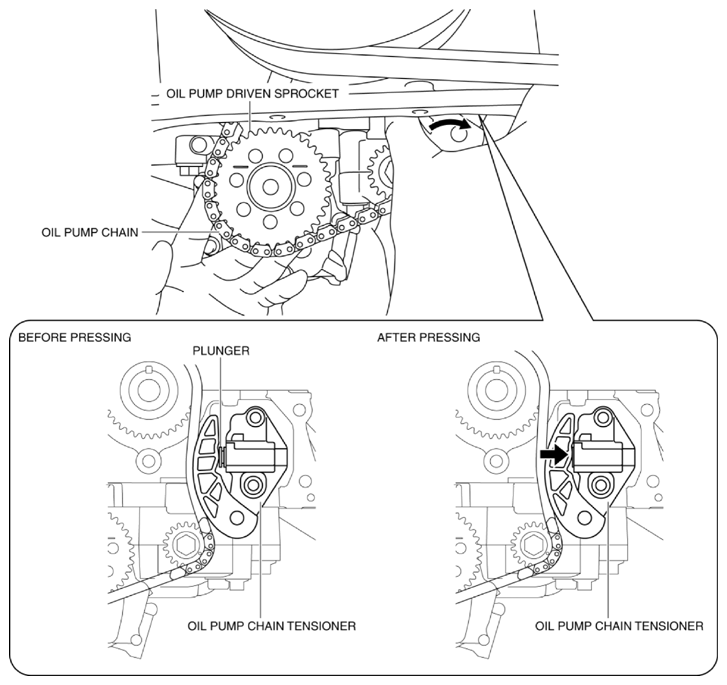

- While pressing the oil pump chain in the direction of the arrow shown in the figure, remove the oil pump driven sprocket.
