Oil Cooler Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil cooler with the tab aligned with the notch of the oil filter body.

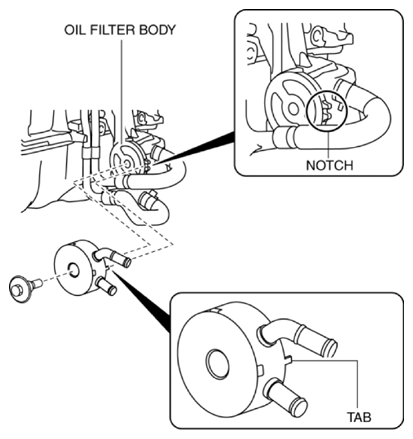

Fig 1: Identifying Oil Filter Body, Notch And Tab

Courtesy of MAZDA MOTORS CORP.
