Engine Oil Solenoid Valve Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

After tightening the three bolts shown in the figure, tighten the first tightened bolt to the specified tightening torque again.

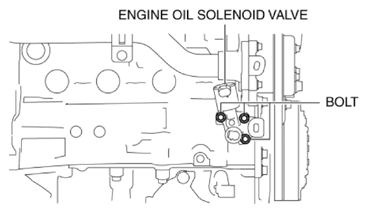

Fig 1: Identifying Engine Oil Solenoid Valve And Bolts
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The tightening order for the three bolts is optional.
  Tightening torque
- 12-16 N.m {123-163 kgf.cm, 107-141 in.lbf}
