Engine Oil Solenoid Valve Operation Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine oil solenoid valve. (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .)
  2. Verify that the battery is fully charged.
  3. Connect the battery to the engine oil solenoid valve connector (2 terminals) as shown in the figure.

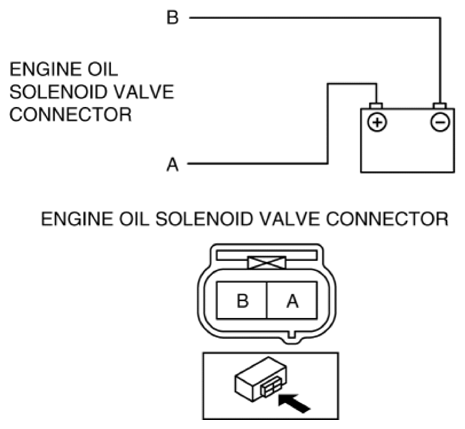

    Fig 1: Connecting Battery To Engine Oil Solenoid Valve Connector Terminals
    G10916169Courtesy of MAZDA MOTORS CORP.
  4. Verify that there is an operation sound from the engine oil solenoid valve when applying battery voltage between engine oil solenoid valve connector terminals A and B.
    • If the operation sound cannot be heard, replace the engine oil solenoid valve.
    NOTE:
    • A click sound is heard when the engine oil solenoid valve operates normally.
  5. Install the engine oil solenoid valve. (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .)
