DTC P061F-00: Internal Control Module Throttle Valve Actuator Controller Performance Problem: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| DTC P061F:00 |
Internal control module throttle valve actuator controller performance problem |
| DETECTION CONDITION |
- When any of the following conditions is met:
- Start stop unit internal malfunction
- CAN communication line malfunction between start stop unit and PCM
- PCM internal malfunction
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |

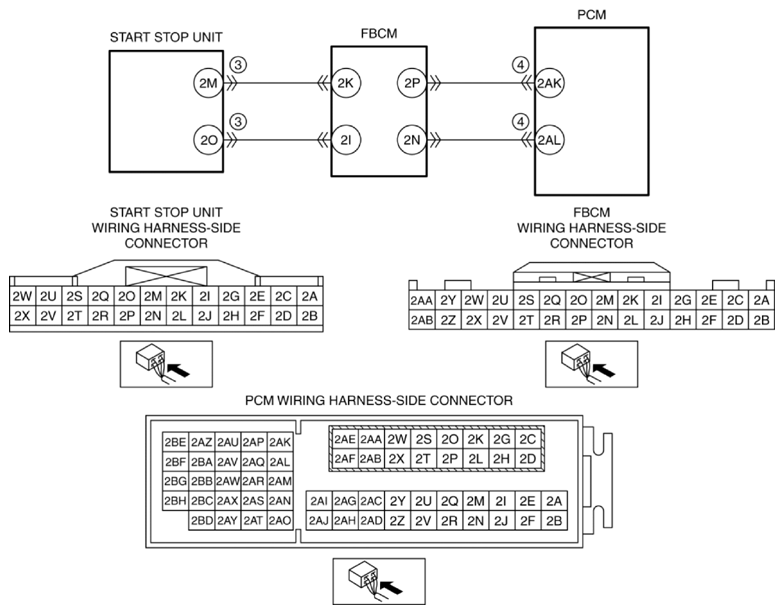

- CAN communication line malfunction between start stop unit and PCM
- Start stop unit terminal 2M-Front body control module (FBCM) terminal 2K
- Start stop unit terminal 2O-Front body control module (FBCM) terminal 2I
- Front body control module (FBCM) terminal 2P-PCM terminal 2AK
- Front body control module (FBCM) terminal 2N-PCM terminal 2AL
- Start stop unit connector or terminals malfunction
- PCM connector or terminals malfunction
- Start stop unit malfunction
- PCM malfunction
|
|
|
