DTC P0524-00: Engine Oil Pressure Too Low: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| DTC P0524:00 |
Engine oil pressure too low |
| DETECTION CONDITION |
- The oil pressure switch is on for a continuous 5 s
with the following condition met: (engine oil warning light illuminates when 1 s
has elapsed)
- When engine speed is above 650 rpm
and engine coolant temperature is 30 °C {86 °F} or less
- When engine speed is above 1, 500 rpm
and engine coolant temperature is 68 °C {154 °F} or less
- When engine speed is above 2, 500 rpm
and engine coolant temperature is 68 °C {154 °F} or more
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- Engine oil leakage
- Improper engine oil level
- Oil pressure switch connector or terminals malfunction

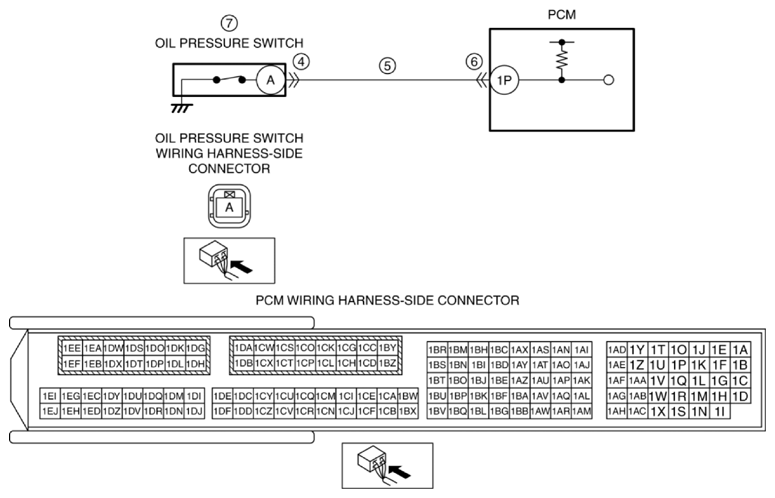

- Short to ground in wiring harness between oil pressure switch terminal A and PCM terminal 1P
- PCM connector or terminals malfunction
- Oil pressure switch malfunction
- Oil pump malfunction
- PCM malfunction
|
|
|
