DTC P0482-00: Cooling Fan Relay No. 2 And No. 3 Control Circuit Malfunction: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

DTC P0482:00	Cooling fan relay No. 2 and No. 3 control circuit malfunction
DETECTION CONDITION	The cooling fan relay No. 2 and No. 3 control voltage is less than the specification or cooling fan relay No. 2 and No. 3 control current is the specification or more for a continuous 5 s relative to the PCM control signal. Diagnostic support note This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA (Mode 2)/Snapshot data is not available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Not applicable

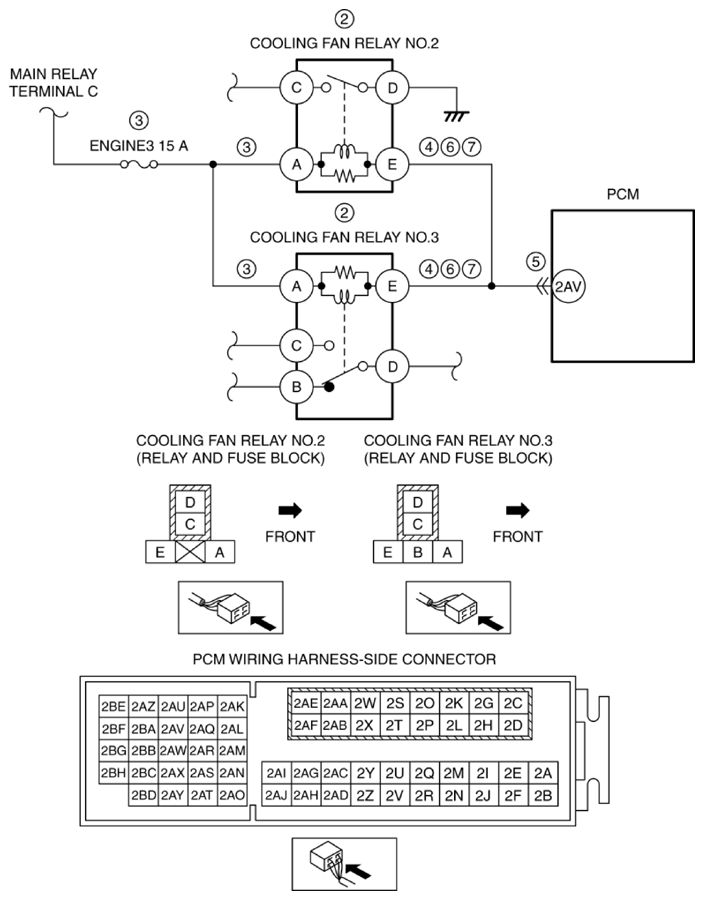

POSSIBLE CAUSE	Cooling fan relay No. 2 and/or No. 3 malfunction Short to ground or open circuit in cooling fan relay No. 2 and/or No. 3 power supply circuit Short to ground in wiring harness between the following terminals: ENGINE3 15 A fuse-Cooling fan relay No. 2 terminal A ENGINE3 15 A fuse-Cooling fan relay No. 3 terminal A ENGINE3 15 A fuse malfunction Open circuit in wiring harness between the following terminals: Main relay terminal C-Cooling fan relay No. 2 terminal A Main relay terminal C-Cooling fan relay No. 3 terminal A Short to ground in wiring harness between the following terminals: Cooling fan relay No. 2 terminal E-PCM terminal 2AV Cooling fan relay No. 3 terminal E-PCM terminal 2AV PCM connector or terminals malfunction Short to power supply in wiring harness between the following terminals: Cooling fan relay No. 2 terminal E-PCM terminal 2AV Cooling fan relay No. 3 terminal E-PCM terminal 2AV Open circuit in wiring harness between the following terminals: Cooling fan relay No. 2 terminal E-PCM terminal 2AV Cooling fan relay No. 3 terminal E-PCM terminal 2AV PCM malfunction
