Function Explanation (DTC Detection Outline)
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

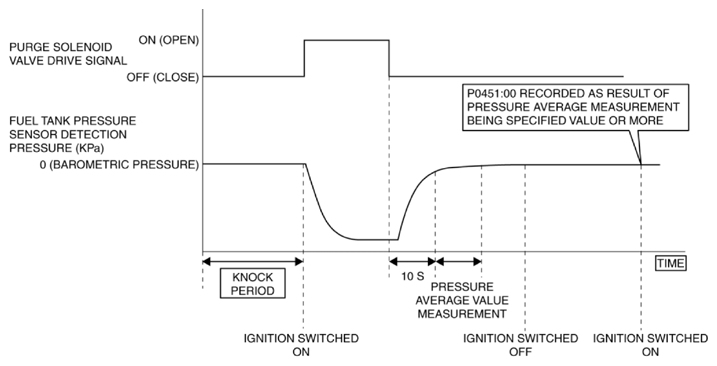

- The PCM detects the pressure of the fuel tank based on the fuel tank pressure sensor signal. The PCM determines a fuel tank pressure sensor signal error based on the condition in which the fuel tank pressure sensor voltage continues to be the specified value or more, and stores a DTC.
