Electric variable valve timing motor (rotation direction) signal

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

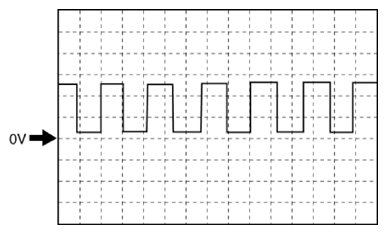

Fig 1: Electric Variable Valve Timing Motor (Rotation Direction) Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

1J(+)-body ground(-)

Oscilloscope setting

2 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

Idle (after warm up)
