Drive-by-wire control (+) signal

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

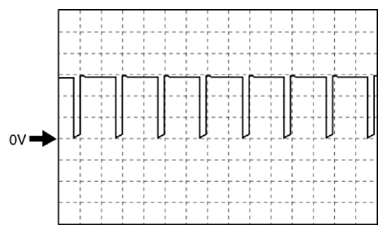

Fig 1: Drive-By-Wire Control (+) Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

1CG(+)-body ground(-)

Oscilloscope setting

5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

Idle after warm up
