Crankshaft Position (CKP) Sensor Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If foreign matter such as metal shaving adhere to the CKP sensor, it can cause abnormal output from the sensor because of flux turbulence, which can negatively affect the engine control. Verify that there is no foreign matter on the CKP sensor when replacing.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Lift up the vehicle.
  3. Remove the following parts for easier access.
    1. Service hole cover (installed to front under cover No. 2) used to remove the oil filter (See OIL FILTER REPLACEMENT .)
    2. Front splash shield (RH) (See SPLASH SHIELD REMOVAL/INSTALLATION .)
  4. Disconnect the CKP sensor connector.
  5. Remove the CKP sensor.

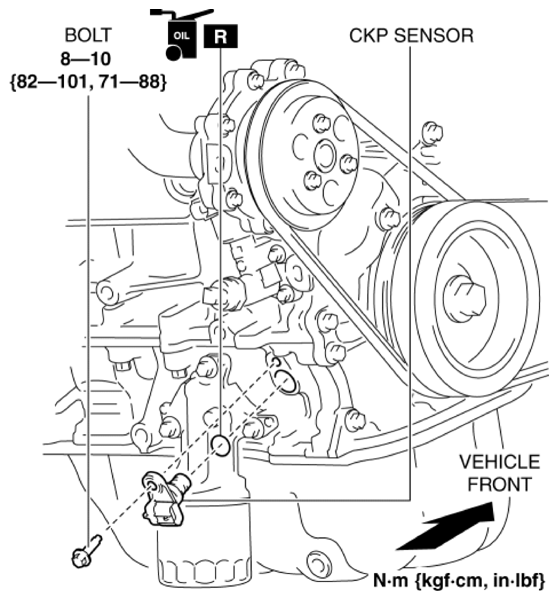

    Fig 1: Identifying CKP Sensor And Bolt With Torque Specification
    G10916600Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
