Assembly of Wiring Harness to Wire Clip Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Secure the heat shrinkable tube on the wiring harness to wire clip A.

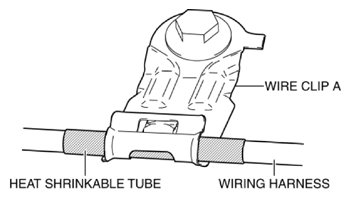

Fig 1: Identifying Heat Shrinkable Tube, Wiring Harness And Wire Clip A
Courtesy of MAZDA MOTORS CORP.
Secure the wiring harness to wire clip B so that the band on the wiring harness is positioned to the position shown in the figure.

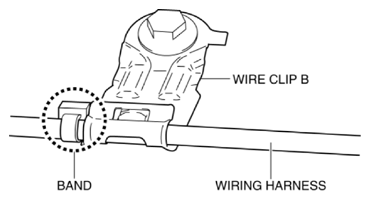

Fig 2: Identifying Wiring Harness And Wire Clip B

Courtesy of MAZDA MOTORS CORP.
