Front Wiring Harness Protector No. 1

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the air cleaner assembly. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  3. While pressing the tabs of clip A in the direction of the arrows (1) shown in the figure, pull clip A in the direction of the arrow (2) shown in the figure to detach the tab of clip A from the radiator.

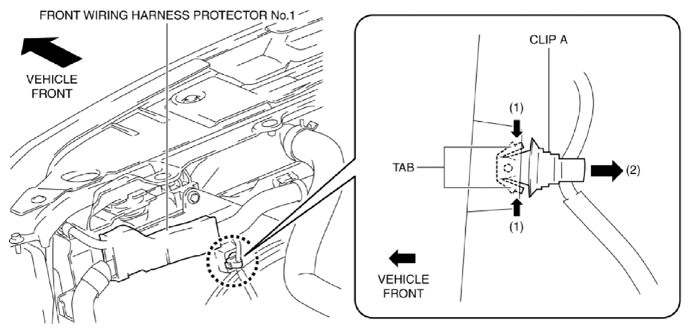

    Fig 1: Detaching Clip Tab From Radiator
    G10939641Courtesy of MAZDA MOTORS CORP.
  4. Detach clip A.
  5. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

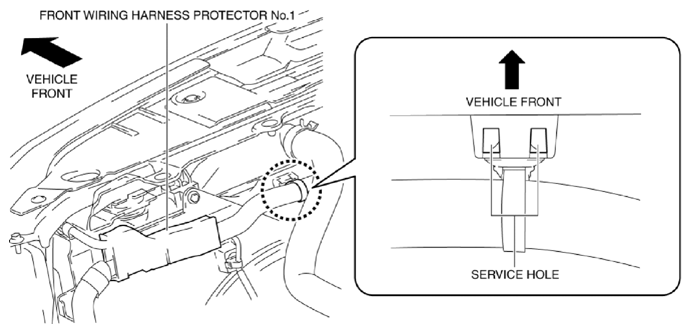

    Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Into Service Hole
    G10939642Courtesy of MAZDA MOTORS CORP.
  6. While pressing the tabs of clip B in the direction of the arrows (1) shown in the figure, pull clip B in the direction of the arrow (2) shown in the figure to detach the tab of clip B from the radiator.
    Fig 3: Detaching Clip From Radiator
    G10939643Courtesy of MAZDA MOTORS CORP.
  7. Detach clip B.
  8. While pressing the tabs of clip C in the direction of the arrows (1) shown in the figure, pull clip C in the direction of the arrow (2) shown in the figure to detach the tab of clip C from the front bumper.

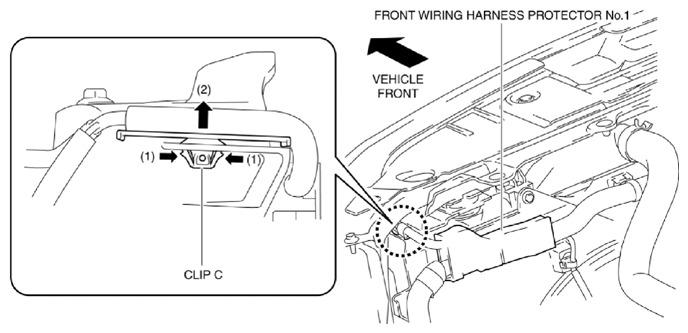

    Fig 4: Pressing Radiator Clips Tabs
    G10939644Courtesy of MAZDA MOTORS CORP.
  9. Remove clip C.
  10. While pressing the clip tabs in the direction of the arrows (1) shown in the figure, pull the clip in the direction of the arrow (2) to detach the clip tabs from the radiator.

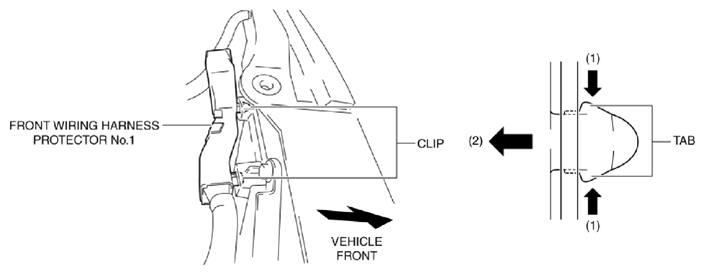

    Fig 5: Removing Front Wiring Harness Protector
    G10939645Courtesy of MAZDA MOTORS CORP.
  11. Detach all the clip tabs and remove the clips.
  12. Insert a flathead screwdriver into the position shown in the figure.

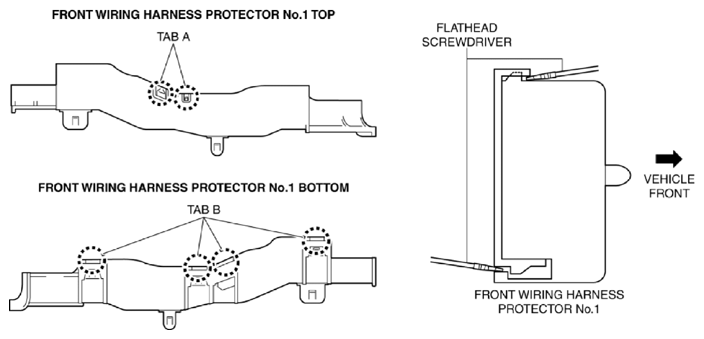

    Fig 6: Identifying Front Wiring Harness Protectors
    G10939646Courtesy of MAZDA MOTORS CORP.
  13. While lifting up the hooks in the direction of the arrows (1) shown in the figure using a flathead screwdriver, pull the hooks in the direction of the arrows (2) shown in the figure to detach the tabs from the hooks.

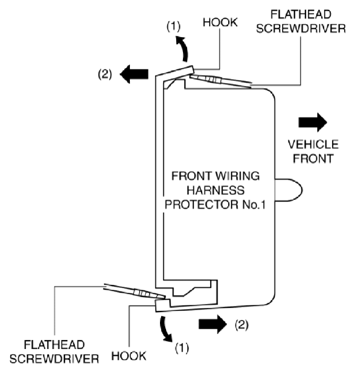

    Fig 7: Detaching Tabs From Hooks
    G10939647Courtesy of MAZDA MOTORS CORP.
  14. Detach all the tabs and hooks and remove front wiring harness protector No. 1.
  15. Install in the reverse order of removal.
