On-Board Diagnostic Wiring Diagram [Standard Deployment Control System]

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

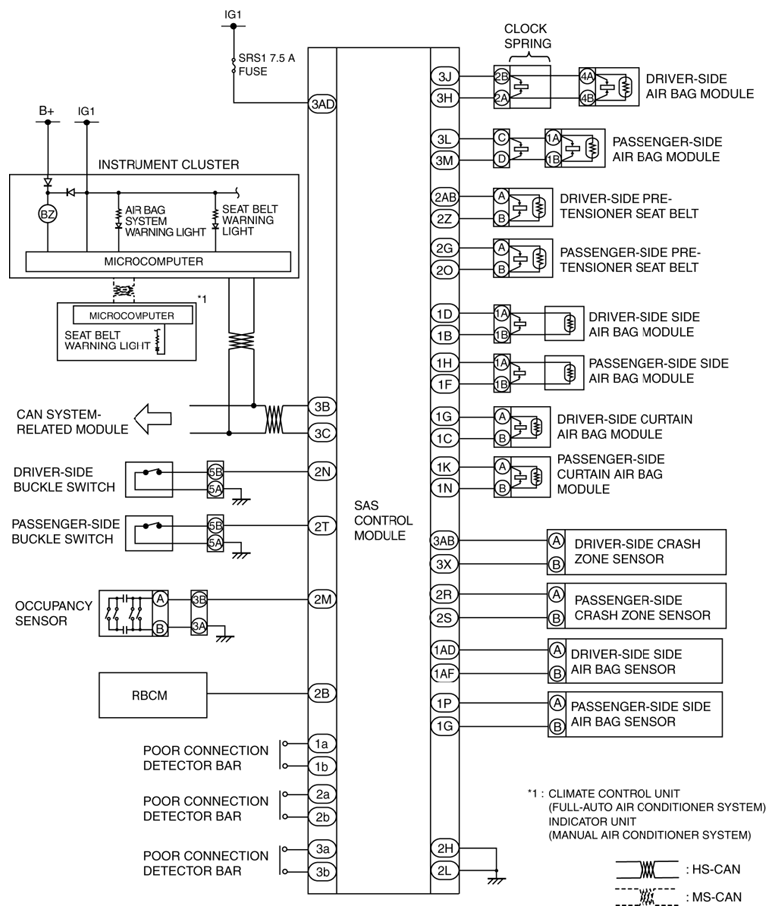

Fig 1: Standard Deployment Control System Wiring Diagram

Courtesy of MAZDA MOTORS CORP.

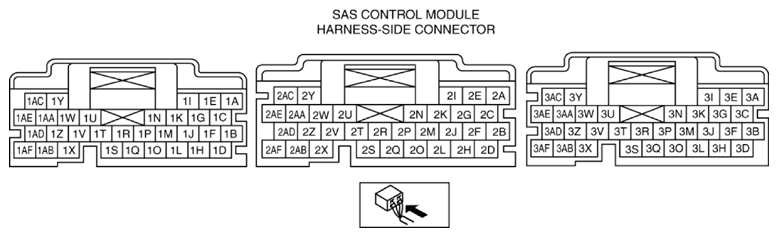

Fig 2: Identifying SAS Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.
