DTC B10FD-11: B10FD-13: B10FD-87: B10FD-96: Driver-Side Side Air Bag Sensor No. 1: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
- B10FD:11: Driver-side side air bag sensor No. 1 circuit short to body ground or power supply
- B10FD:13: Driver-side side air bag sensor No. 1 circuit open circuit
- B10FD:87: Signal reception error from driver-side side air bag sensor No. 1
- B10FD:96: Driver-side side air bag sensor No. 1 internal malfunction
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

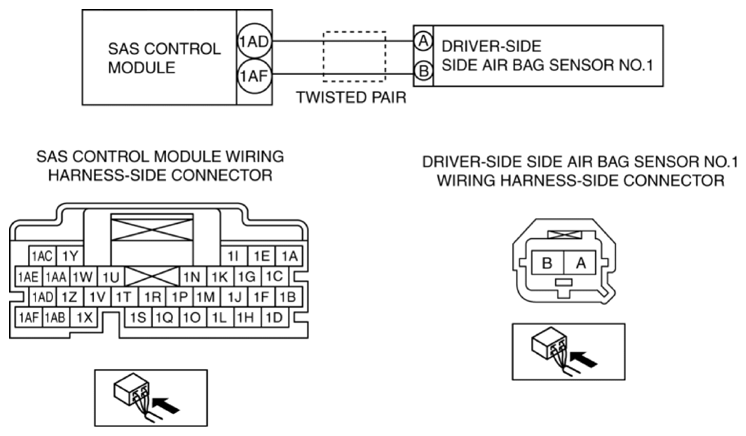

- Wiring harness between the driver-side side air bag sensor No. 1 and SAS control module has a malfunction
- Driver-side side air bag sensor No. 1 has a malfunction
|
| Fail-safe |
- |
| Possible cause |
- Driver-side side air bag sensor No. 1 connector malfunction
- Short circuit to power supply or body ground in the wiring harness between the driver-side side air bag sensor No. 1 and SAS control module
- Open circuit in the wiring harness between the driver-side side air bag sensor No. 1 and SAS control module
- Driver-side side air bag sensor No. 1 malfunction
- SAS control module malfunction
|
|
|
