DTC P0201-00: Fuel Injector Circuit/Open Cylinder No. 1: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| DTC P0201:00 |
Fuel injector circuit/open cylinder No. 1 |
| DETECTION CONDITION |
- If the fuel injection verification signal is not input at 25 times
continuously even though the PCM drives the fuel injector No. 1, the PCM determines that there is an open circuit in the fuel injector No. 1 control circuit.
MONITORING CONDITIONS
- The following conditions are met:
- Battery voltage: 10.5 V or more
- Fuel injection control: except during fuel cut
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |

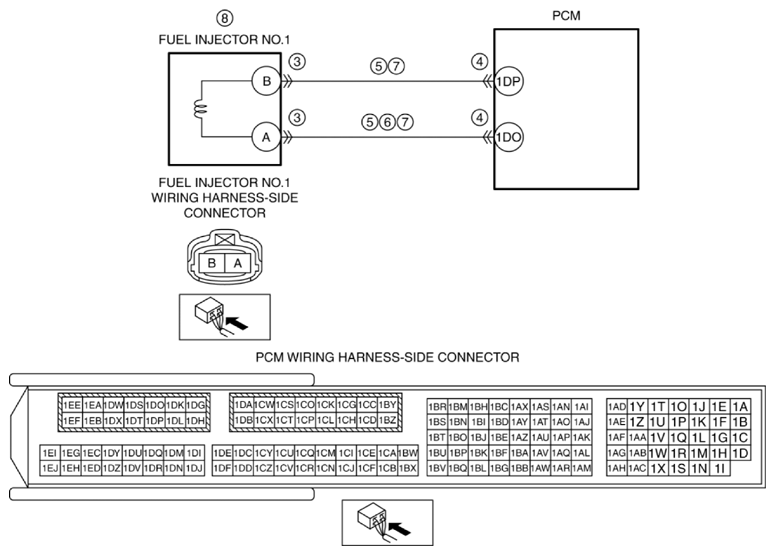

| POSSIBLE CAUSE |
- Fuel injector No. 1 connector or terminals malfunction
- PCM connector or terminals malfunction
- Short to ground in wiring harness between the following terminals:
- Fuel injector No. 1 terminal B-PCM terminal 1DP
- Fuel injector No. 1 terminal A-PCM terminal 1DO
- Short to power supply in wiring harness between fuel injector No. 1 terminal A and PCM terminal 1DO
- Open circuit in wiring harness between the following terminals:
- Fuel injector No. 1 terminal B-PCM terminal 1DP
- Fuel injector No. 1 terminal A-PCM terminal 1DO
- Fuel injector No. 1 malfunction
- PCM malfunction
|
|
|
