System Wiring Diagram

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

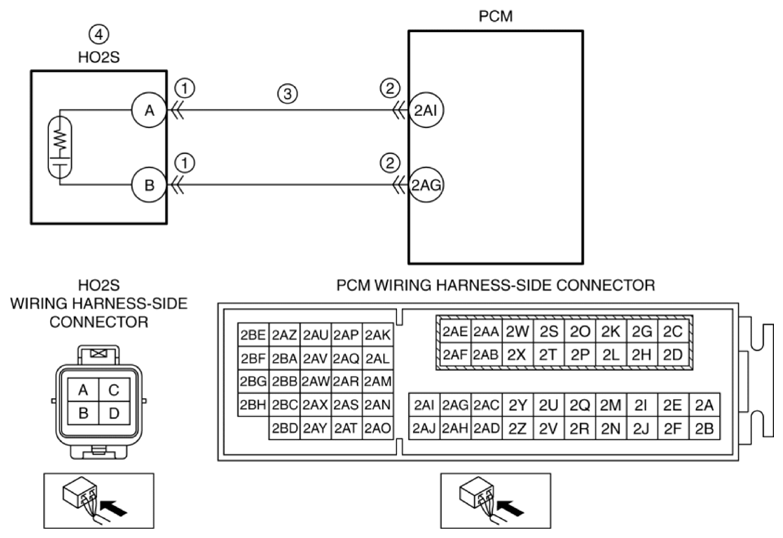

Fig 1: HO2S System Wiring Diagram
G10915755Courtesy of MAZDA MOTORS CORP.
