Except rear center seat belt

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that the belt can be pulled out smoothly, and that it retracts smoothly.

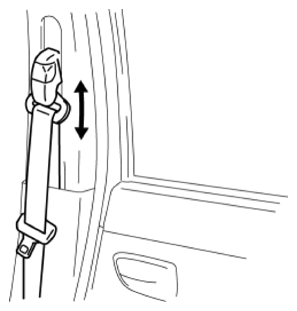

    Fig 1: Checking Except Rear Center Seat Belt
    G10938003Courtesy of MAZDA MOTORS CORP.
    • If there is any malfunction, replace the seat belt.
  2. Verify that the retractor locks when the belt is pulled quickly.
    • If there is any malfunction, replace the seat belt.
  3. Remove the retractor.
  4. While pulling the seat belt out, make sure that the seat belt does not lock when the retractor is tilted slowly up to 15°  from the mounted position and locks when the retractor is tilted 40° or more.

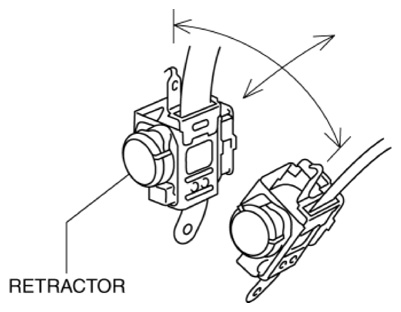

Fig 2: Checking Seat Belt Lock
G10938004Courtesy of MAZDA MOTORS CORP.
