DTC B1226-11: B1226-13: B1226-87: B1226-96: Driver-Side Pressure Sensor: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
- B1226:11: Driver-side pressure sensor circuit short to body ground
- B1226:13: Driver-side pressure sensor circuit open circuit or short to power supply
- B1226:87: Signal reception error from driver-side pressure sensor
- B1226:96: Driver-side pressure sensor internal malfunction
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

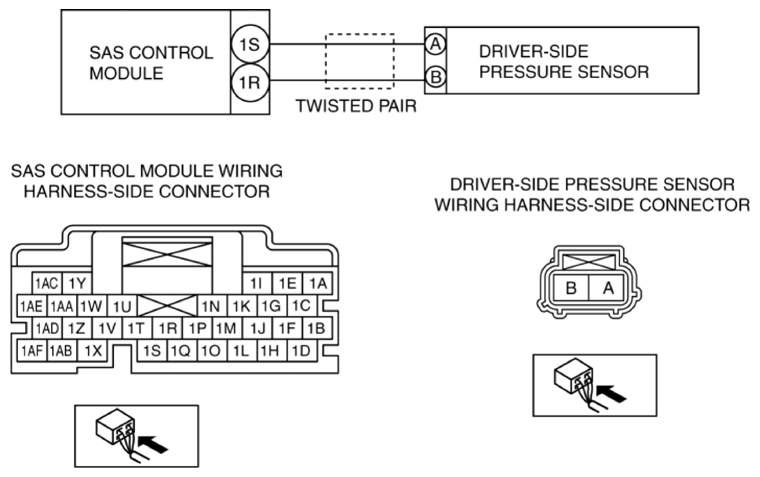

- Malfunction in the wiring harness between the driver-side pressure sensor and SAS control module
- Malfunction in the driver-side pressure sensor circuit
|
| Fail-safe |
- |
| Possible cause |
- Driver-side pressure sensor connector malfunction
- Open or short circuit or short to ground or short to power supply in the wiring harness between the driver-side pressure sensor and SAS control module
- Driver-side pressure sensor malfunction
- SAS control module malfunction
|
|
|
