DTC B1196-11: B1196-13: B1196-87: B1196-96: Driver-Side Side Air Bag Sensor: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
- B1196:11: Driver-side side air bag sensor circuit short to body ground
- B1196:13: Driver-side side air bag sensor circuit open circuit or short to power supply
- B1196:87: Signal reception error from driver-side side air bag sensor
- B1196:96: Driver-side side air bag sensor internal malfunction
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

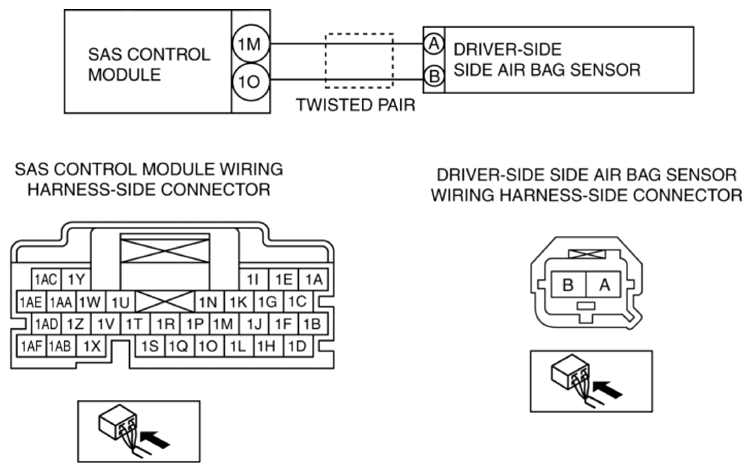

- Malfunction in the wiring harness between the driver-side side air bag sensor and SAS control module
- Malfunction in the driver-side side air bag sensor circuit
|
| Fail-safe |
- |
| Possible cause |
- Driver-side side air bag sensor connector malfunction
- Open or short circuit or short to ground or short to power supply in the wiring harness between the driver-side side air bag sensor and SAS control module
- Driver-side side air bag sensor malfunction
- SAS control module malfunction
|
|
|
