DTC B0094-11: B0094-13: B0094-87: B0094-96: Driver-Side Crash Zone Sensor: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
- B0094:11: Driver-side crash zone sensor circuit short to body ground
- B0094:13: Driver-side crash zone sensor circuit open circuit or short to power supply
- B0094:87: Signal reception error from driver-side crash zone sensor
- B0094:96: Driver-side crash zone sensor internal malfunction
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

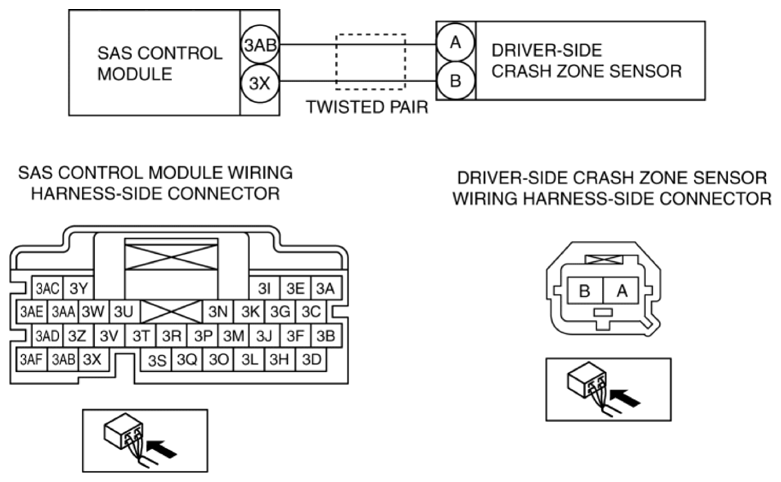

- Malfunction in the wiring harness between the driver-side crash zone sensor and SAS control module
- Malfunction in the driver-side crash zone sensor circuit
|
| Fail-safe |
- |
| Possible cause |
- Driver-side crash zone sensor connector malfunction
- Open or short circuit or short to ground or short to power supply in the wiring harness between the driver-side crash zone sensor and SAS control module
- Driver-side crash zone sensor malfunction
- SAS control module malfunction
|
|
|
