DTC B0010-11: B0010-12: B0010-13: B0010-19: B0010-1A: Passenger-Side Air Bag Module (Inflator No. 1): Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

System malfunction location	B0010:11: Passenger-side air bag module (inflator No. 1) circuit short to body ground B0010:12: Passenger-side air bag module (inflator No. 1) circuit short to power supply B0010:13: Passenger-side air bag module (inflator No. 1) circuit open circuit or resistance high B0010:19: Short circuit to passenger-side air bag module (inflator No. 1) and other air bag module circuits B0010:1A: Passenger-side air bag module (inflator No. 1) circuit resistance low

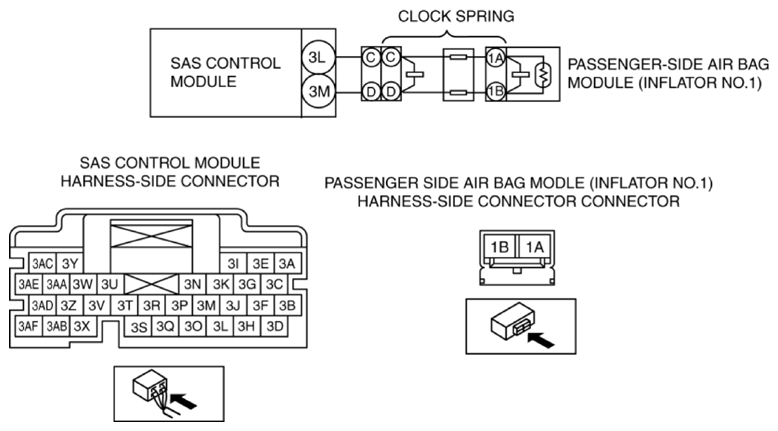

Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Resistance other than 0.81-6.42 ohms detected in passenger-side air bag module (inflator No. 1) circuit Wiring harness between passenger-side air bag module (inflator No. 1) and SAS control module has malfunction
Fail-safe	-
Possible cause	Passenger-side air bag module (inflator No. 1) connector malfunction Short circuit to power supply or body ground in the wiring harness between the passenger-side air bag module (inflator No. 1) and the SAS control module Open circuit in the wiring harness between the passenger-side air bag module (inflator No. 1) and the SAS control module Passenger-side air bag module malfunction SAS control module malfunction
