DTC B0001-11: B0001-12: B0001-13: B0001-19: B0001-1A: Driver-Side Air Bag Module (Inflator No. 1): Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

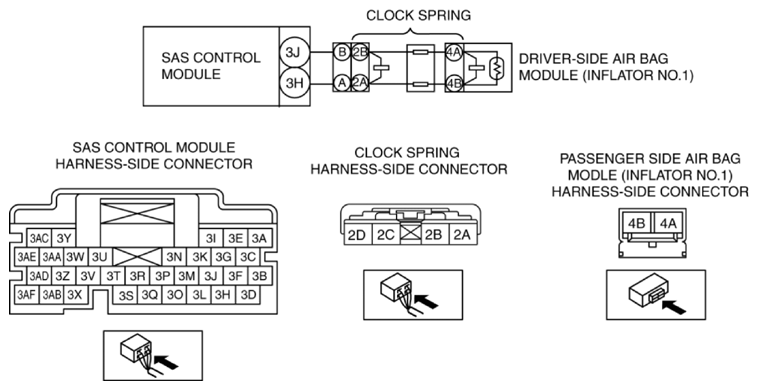

System malfunction location	B0001:11: Driver-side air bag module (inflator No. 1) circuit short to body ground B0001:12: Driver-side air bag module (inflator No. 1) circuit short to power supply B0001:13: Driver-side air bag module (inflator No. 1) circuit resistance high B0001:19: Short circuit to driver-side air bag module (inflator No. 1) and other air bag module circuits B0001:1A: Driver-side air bag module (inflator No. 1) circuit resistance low
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Resistance other than 0.99-6.42 ohms detected in driver-side air bag module (inflator No. 1) circuit Wiring harness between driver-side air bag module (inflator No. 1) and SAS control module has malfunction
Fail-safe	-
Possible cause	Clock spring connector malfunction Clock spring malfunction Short circuit to power supply or body ground in the wiring harness between the clock spring and SAS control module Open circuit in the wiring harness between the clock spring and SAS control module Driver-side air bag module (inflator No. 1) malfunction SAS control module malfunction
