Seat Back Side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition to off.
  2. Disconnect the negative battery cable and wait 1 min. or more  . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Inspect for continuity between the seat warmer unit connector (short code) terminal A-B.

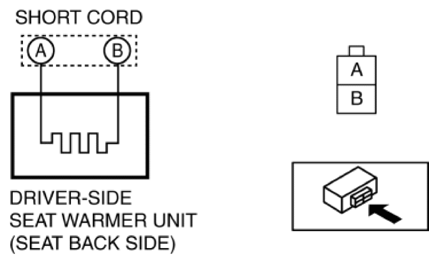

Fig 1: Inspecting Continuity Between Seat Warmer Unit Connector (Short Code) Terminals
G10938724Courtesy of MAZDA MOTORS CORP.
Fig 2: Front Seat Back Pad Terminal Continuity Chart
G10938725Courtesy of MAZDA MOTORS CORP.
