Rear Seat Carry Into Vehicle Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Before carrying the rear seat into the vehicle, shift the rear buckle in the direction of the arrow (1).

Fig 1: Shifting Rear Buckle
Courtesy of MAZDA MOTORS CORP.
Insert a needle into area A shown in the figure and fix the rear buckle in the down condition

Fig 2: Inserting Needle Into Rear Buckle
Courtesy of MAZDA MOTORS CORP.
Carry the rear seat into the vehicle.

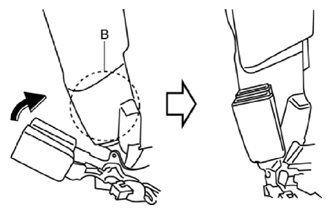

Remove the needle fixing the rear buckle tilted frontward, and fold the rear buckle to area B shown in the figure.

Fig 3: Removing Needle Fixing
Courtesy of MAZDA MOTORS CORP.
Fold the rear seat cushion, and verify that the rear buckle is folded into the rear seat cushion.

Fig 4: Identifying Rear Seat Cushion

Courtesy of MAZDA MOTORS CORP.
