Rear Hinge Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

While moving the rear seat back in the direction of arrow shown in the figure, install the rear hinge to pin E.

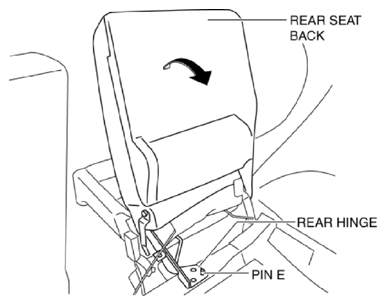

Fig 1: Removing Rear Hinge To Pin E

Courtesy of MAZDA MOTORS CORP.
