Rear Console Side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Switch the ignition off (LOCK).
Disconnect the negative battery cable and wait for 1 min . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove the screw A.

Fig 1: Removing Front Seat
Courtesy of MAZDA MOTORS CORP.

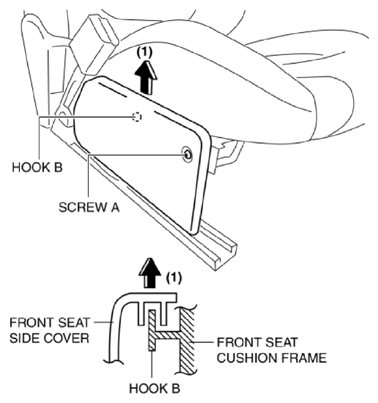

Pull up the front seat side cover in the direction of the arrow (1) shown in the figure and set hook B aside.

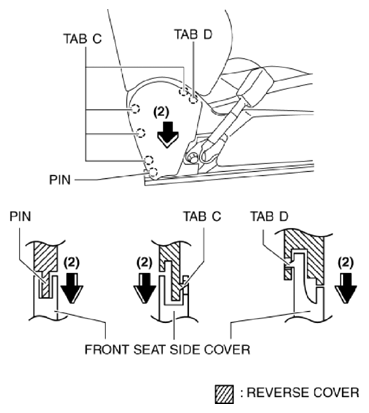

Pull the front seat side cover in the direction of the arrow (2) shown in the figure and disengage the tabs C and D, and the pin.

Fig 2: Pulling Up Front Seat Side Cover
Courtesy of MAZDA MOTORS CORP.

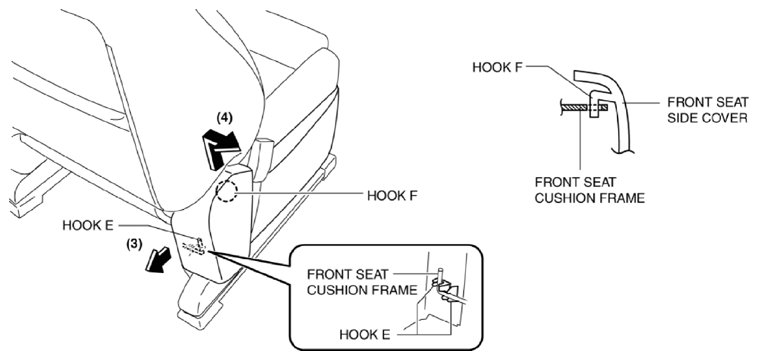

Pull the front seat side cover in the direction of the arrow (3) shown in the figure and set hook E aside.

Fig 3: Pulling Up Front Seat Side Cover
Courtesy of MAZDA MOTORS CORP.
Pull the front seat side cover in the direction of the arrow (4) shown in the figure and set hook F aside.
Remove the front seat side cover.
Install in the reverse order of removal.
When the passenger's seat is removed, perform the DTC inspection for the SAS control module using the M-MDS and verify that no DTCs are displayed. (See DTC INSPECTION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
NOTE:
- If any DTCs are displayed, perform malfunction repair referring to the applicable DTC troubleshooting. (See DTC TABLE [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
When the passenger's seat is replaced with a new one, perform the occupant classification sensor calibration using the M-MDS. (See OCCUPANT CLASSIFICATION SENSOR CALIBRATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
