Front Seat Removal/Installation: Driver-Side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition off (LOCK).
  2. Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Slide the lock in the direction of arrow (1) shown in the figure, and while pressing the tab in the direction of arrow (2), disconnect the connector in the direction of arrow (3).

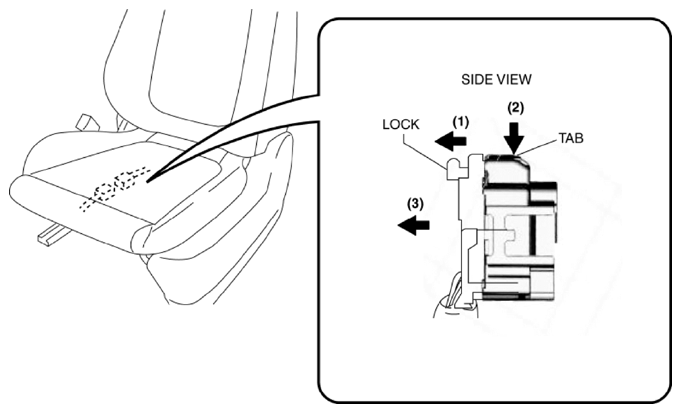

    Fig 1: Pressing Front Seat Connector Tabs
    G10938508Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts in the order of (1), (2), (3), (4) shown in the figure, then take the front seat out from the opened front door.

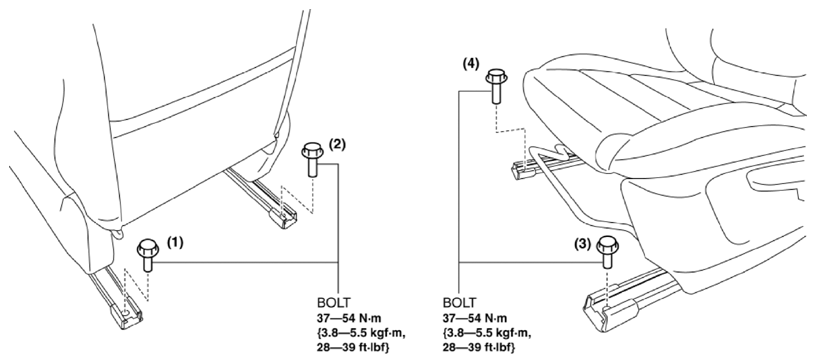

    Fig 2: Removing Front Seat Bolts
    G10938509Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
