Front Seat Back Trim Removal/Installation: Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Follow the procedure for each type and install the front seat back trim to the front seat back pad.
    CAUTION:
    • If a C-ring is damaged while removing or installing the front seat back trim and front seat back pad, it may not be possible to install the front seat back trim and front seat back pad normally. When removing or installing the front seat back trim and front seat back pad, be careful not to damage the C-rings.
    • If a C-ring is damaged, replace it with a new one.
    NOTE:
    • Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.
      Fig 1: C-Ring Tightening Amount Range
      G10938536Courtesy of MAZDA MOTORS CORP.

      A type

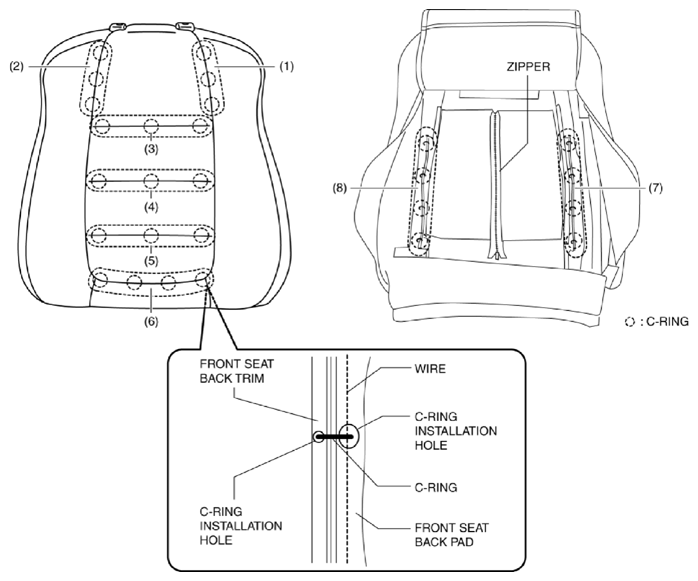

      • Align the front seat back trim with the installation hole of the front seat back pad, and install the C-rings in the order of (1), (2), (3), (4), (5), (6), (7), and (8) shown in the figure.
        Fig 2: Identifying Front Seat Back Pad C-Rings (A Type)
        G10938537Courtesy of MAZDA MOTORS CORP.
      • Fasten the zipper.

        B type

      • Align the front seat back trim with the installation hole of the front seat back pad, and install the C-rings in the order of (1), (2), (3), (4), (5), (6), (7), and (8) shown in the figure.

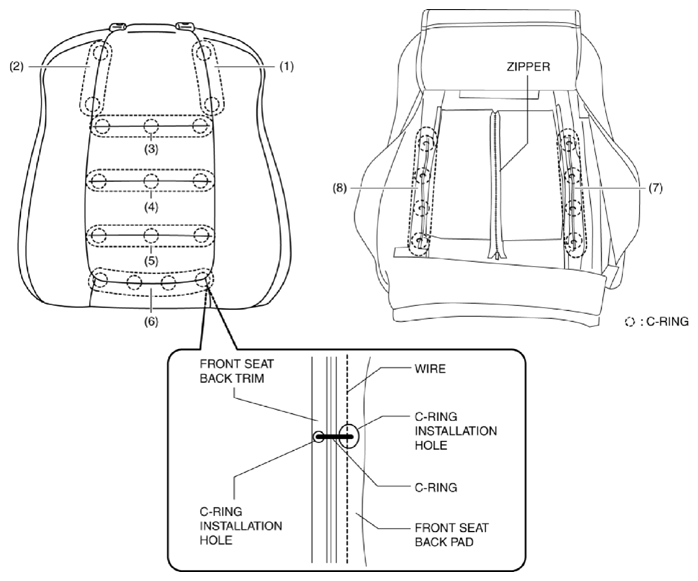

        Fig 3: Identifying Front Seat Back Pad C-Rings (B Type)
        G10938538Courtesy of MAZDA MOTORS CORP.
      • Fasten the zipper.

        C type

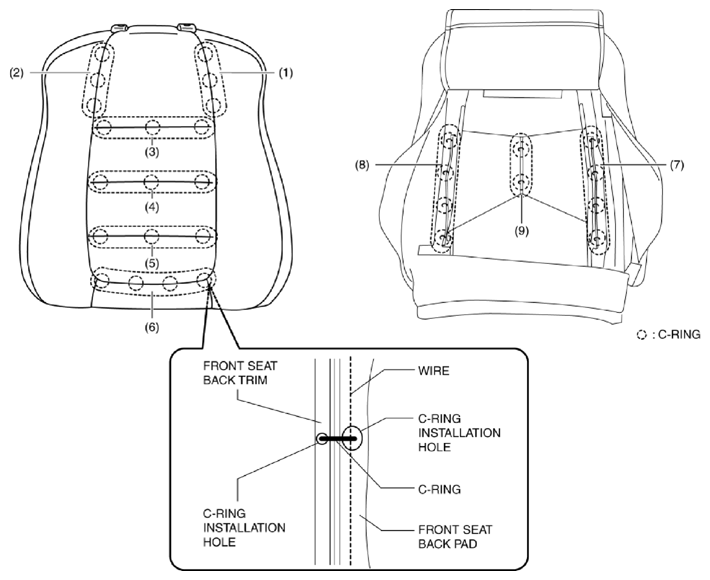

      • Align the front seat back trim with the installation hole of the front seat back pad, and install the C-rings in the order of (1), (2), (3), (4), (5), (6), (7), (8), and (9) shown in the figure.
        Fig 4: Identifying Front Seat Back Pad C-Rings (C Type)
        G10938539Courtesy of MAZDA MOTORS CORP.

        D type

      • Align the front seat back trim with the installation hole of the front seat back pad, and install the C-rings in the order of (1), (2), (3), (4), (5), (6), (7), (8), and (9) shown in the figure.
        Fig 5: Identifying Front Seat Back Pad C-Rings (D Type)
        G10938540Courtesy of MAZDA MOTORS CORP.

        E type

      • Align the front seat back trim with the installation hole of the front seat back pad, and install the C-rings in the order of (1), (2), (3), (4), (5), and (6) shown in the figure.

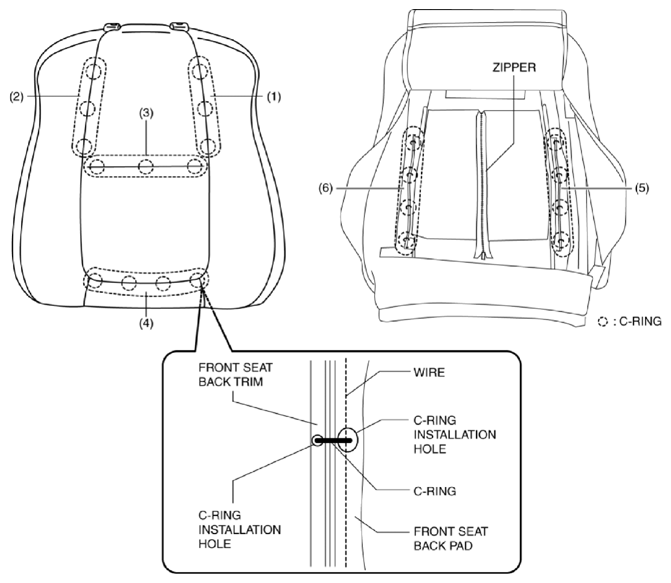

        Fig 6: Identifying Front Seat Back Pad C-Rings (E Type)
        G10938541Courtesy of MAZDA MOTORS CORP.
      • Fasten the zipper.

        F type

      • Align the front seat back trim with the installation hole of the front seat back pad, and install the C-rings in the order of (1), (2), (3), (4), (5), and (6) shown in the figure.

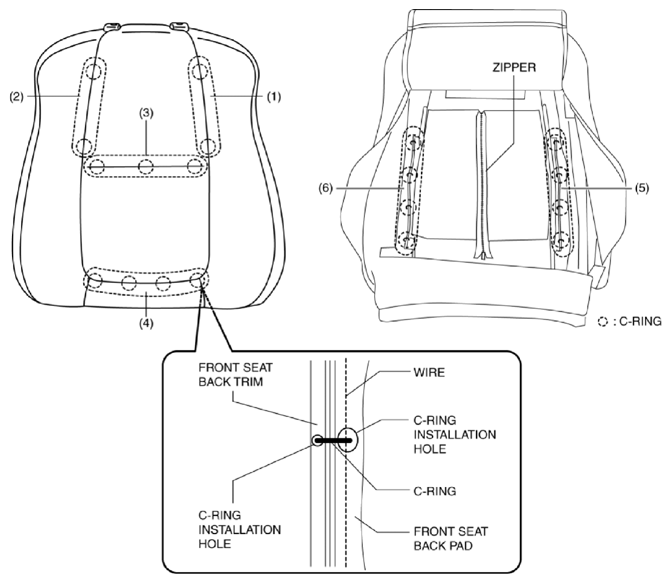

        Fig 7: Identifying Front Seat Back Pad C-Rings (F Type)
        G10938542Courtesy of MAZDA MOTORS CORP.
      • Fasten the zipper.

        G type

      • Align the front seat back trim with the installation hole of the front seat back pad, and install the C-rings in the order of (1), (2), (3), (4), (5), (6), and (7) shown in the figure.
        Fig 8: Identifying Front Seat Back Pad C-Rings (G Type)
        G10938543Courtesy of MAZDA MOTORS CORP.

        H type

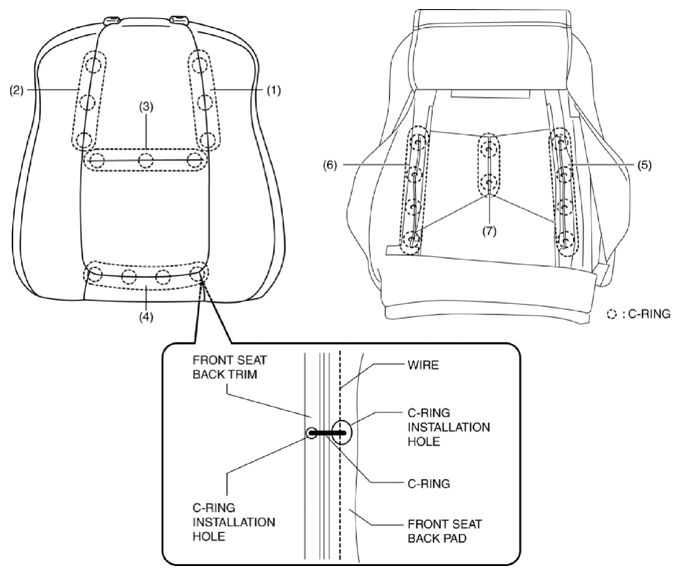

      • Align the front seat back trim with the installation hole of the front seat back pad, and install the C-rings in the order of (1), (2), (3), (4), (5), (6), and (7) shown in the figure.
      Fig 9: Identifying Front Seat Back Pad C-Rings (H Type)
      G10938544Courtesy of MAZDA MOTORS CORP.
  2. Press the front seat back pad inward while pulling the front seat back trim outward.
    Fig 10: Pressing Front Seat Back Pad
    G10938545Courtesy of MAZDA MOTORS CORP.
  3. Install the front seat back trim and the front seat back pad as a single unit to the front seat back frame.
    Fig 11: Identifying Front Seat Back Pad And Trim
    G10938546Courtesy of MAZDA MOTORS CORP.

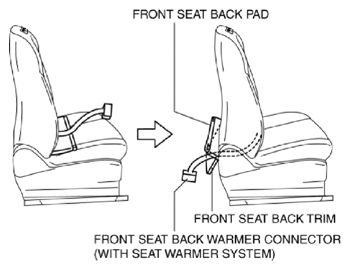

  4. Pull out the front seat back pad, front seat back trim, and front seat back warmer wiring harness (with seat warmer system) rearward of the front seat.
    Fig 12: Pulling Out Front Seat Back Pad
    G10938547Courtesy of MAZDA MOTORS CORP.

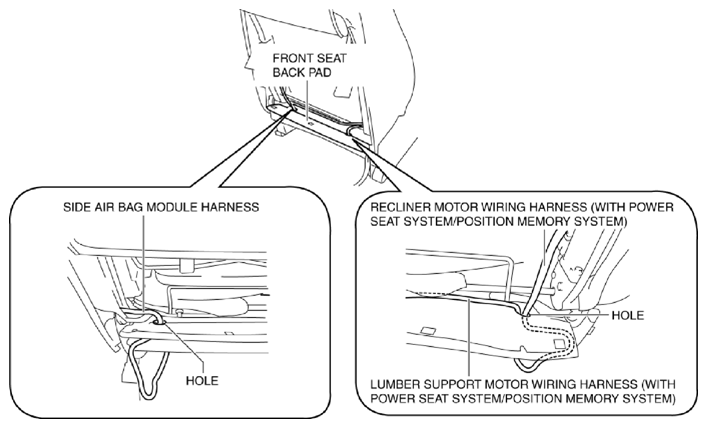

  5. Pass the wiring harnesses shown in the figure through the holes in the front seat back pad.
    Fig 13: Identifying Front Seat Back Pad Side Air Bag Module Harness
    G10938548Courtesy of MAZDA MOTORS CORP.

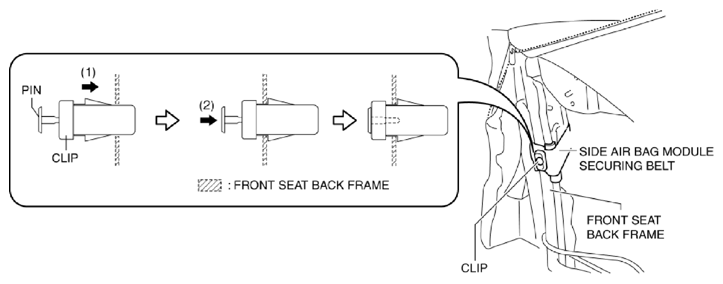

  6. Move the clip in the direction of arrow (1) shown in the figure and install the side air bag module securing belt to the front seat back frame.
    Fig 14: Sliding Front Seat Back Frame Clip
    G10938549Courtesy of MAZDA MOTORS CORP.
  7. Press the pin in the direction of arrow (2) shown in the figure.

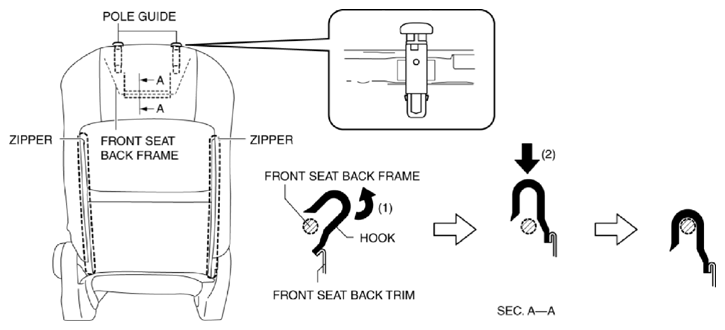

  8. Install the pole guides to the front seat back frame.
    Fig 15: Installing Pole Guides To Front Seat Back Frame
    G10938550Courtesy of MAZDA MOTORS CORP.
  9. Move the hook in the order of arrows (1) and (2) shown in the figure and install the front seat back trim to the front seat back frame.
  10. Fasten the zippers.

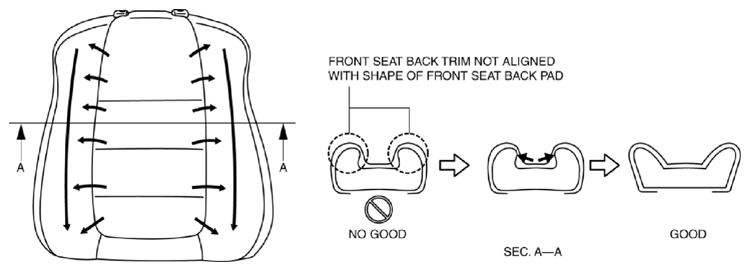

  11. Align the front seat back trim with the shape of the front seat back pad while pressing the front seat back pad outward.
    Fig 16: Aligning Front Seat Back Trim
    G10938551Courtesy of MAZDA MOTORS CORP.

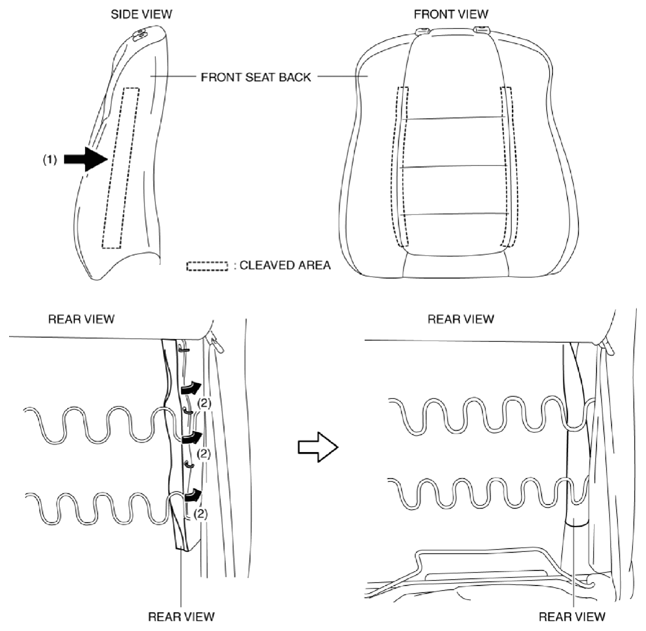

  12. Press the cleaved area of the front seat back in the direction of arrow (1) shown in the figure and move the cleaved area of the front seat back in the direction of arrows (2) while removing the wrinkles on the front seat back.
    Fig 17: Pressing Front Seat Back Cleaved Area
    G10938552Courtesy of MAZDA MOTORS CORP.
  13. Pull the front seat back trim in the direction of the arrow shown in the figure and remove the wrinkles on the front seat back trim.
    Fig 18: Pulling Out Front Seat Back Trim
    G10938553Courtesy of MAZDA MOTORS CORP.

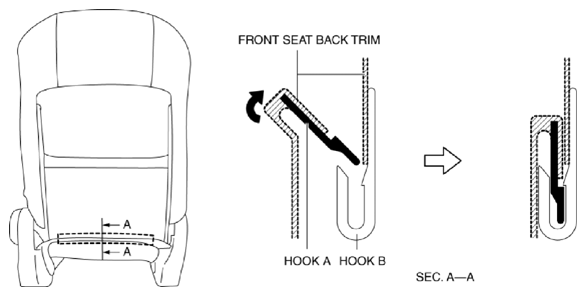

  14. Move hook A in the direction of the arrow shown in the figure and install it to hook B.
    Fig 19: Installing Hook To Front Seat Back Trim
    G10938554Courtesy of MAZDA MOTORS CORP.

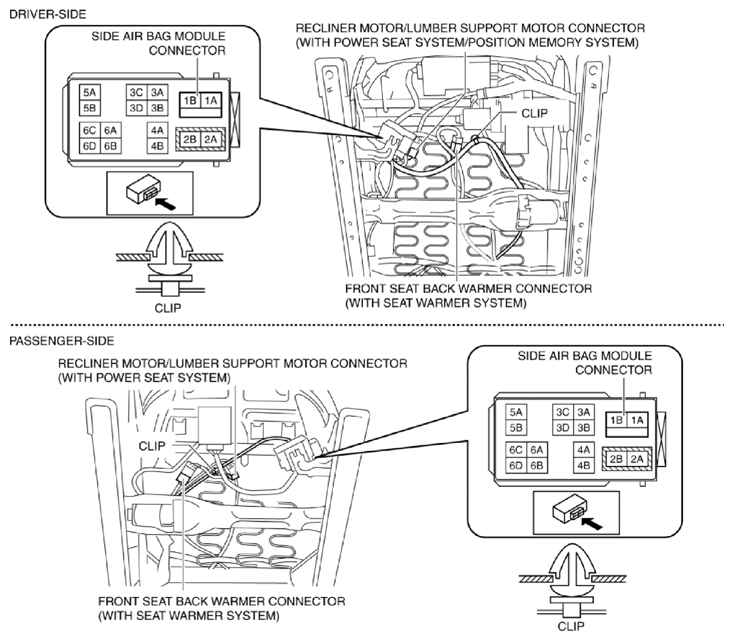

  15. Connect the connectors shown in the figure.
    Fig 20: Identifying Side Air Bag Module Connector
    G10938555Courtesy of MAZDA MOTORS CORP.
  16. Install the clip.

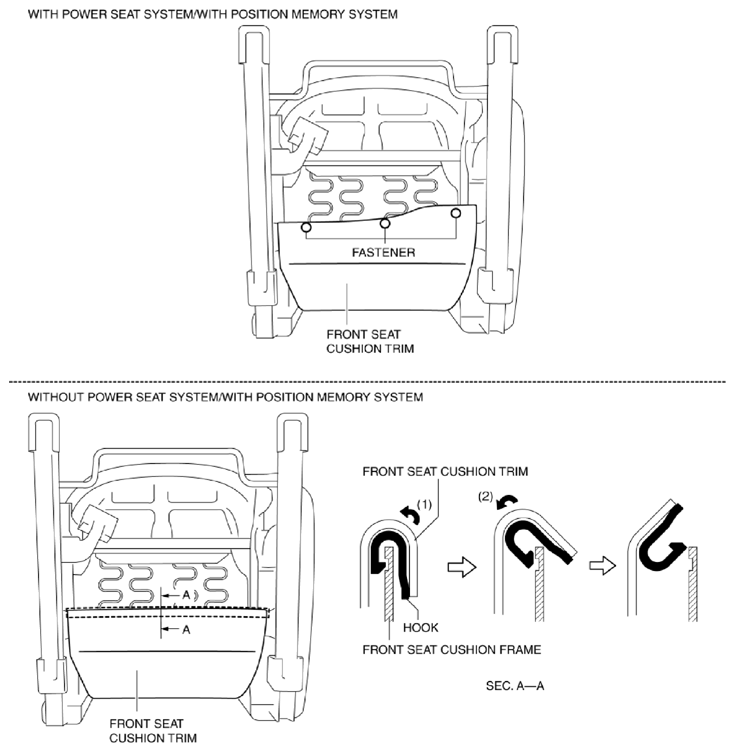

  17. Install the fasteners and install the front seat cushion trim to the front seat cushion frame. (With power seat system/with position memory system)
    Fig 21: Identifying Front Seat Cushion Trim Fastener
    G10938556Courtesy of MAZDA MOTORS CORP.
  18. Move the hook in the order of arrows (1) and (2) shown in the figure and install the front seat cushion trim to the front seat cushion frame. (Without power seat system/without position memory system)
  19. Install the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  20. Install the headrest.
  21. Connect the negative battery cable and wait for 1 min or more  . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  22. When the passenger's seat is removed, perform the DTC inspection for the SAS control module using the M-MDS and verify that no DTCs are displayed. (See DTC INSPECTION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
    NOTE:
  23. When the passenger's seat is replaced with a new one, perform the occupant classification sensor calibration using the M-MDS. (See OCCUPANT CLASSIFICATION SENSOR CALIBRATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
