Aspirator Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the aspirator as shown in the figure.

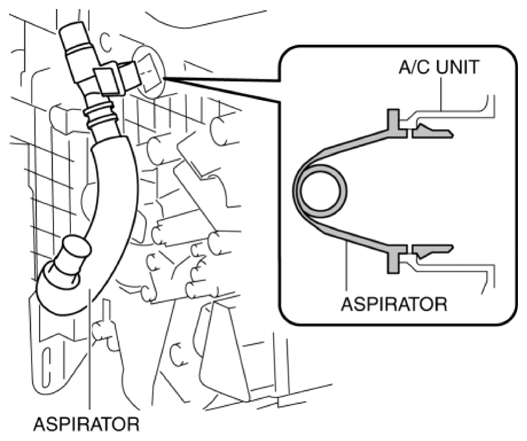

Fig 1: Identifying A/C Unit And Aspirator
G10937595Courtesy of MAZDA MOTORS CORP.
