Passenger Compartment Temperature Sensor Inspection (Auto A/C)
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Measure the temperature around the passenger compartment temperature sensor and measure the resistance between passenger compartment temperature sensor terminals A and B.

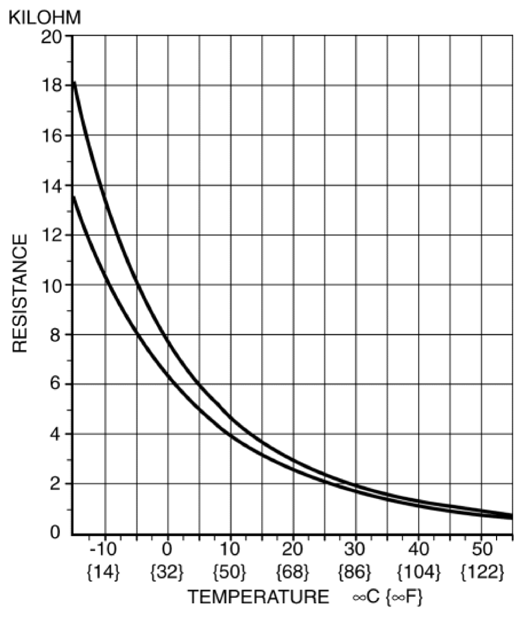

- If the characteristics of the passenger compartment temperature sensor are not as shown in the graph, replace the passenger compartment temperature sensor.
