Stator removal/installation note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Disconnect the magnetic clutch connector.

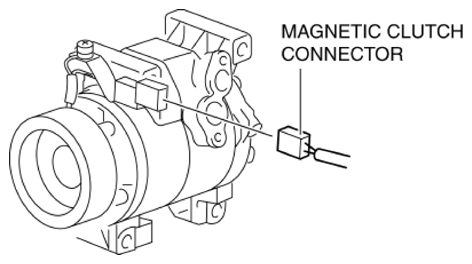

    Fig 1: Identifying Magnetic Clutch Connector
    G10937578Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolts A, B, and C.

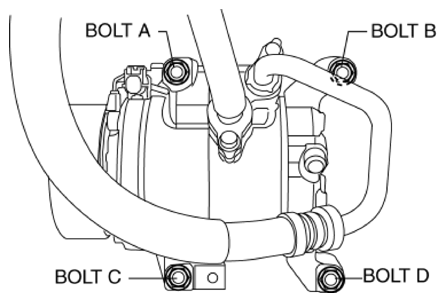

    Fig 2: Identifying Stator Bolts
    G10937579Courtesy of MAZDA MOTORS CORP.
  4. Loose bolt D approx. 2 mm {0.08 in}  .

    Tightening torque

    • 19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
  5. Tilt the A/C compressor centered around bolt D.

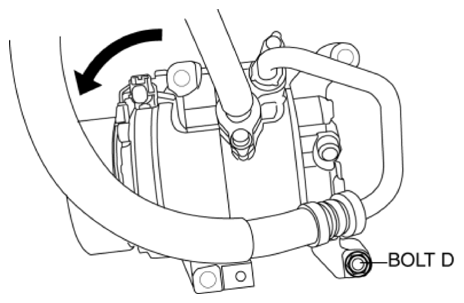

    Fig 3: Tilting A/C Compressor
    G10937580Courtesy of MAZDA MOTORS CORP.
  6. Remove the screw.

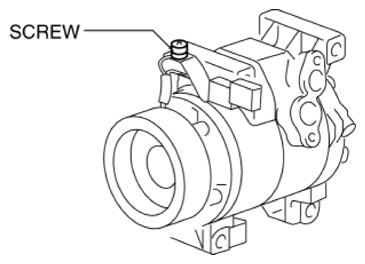

    Fig 4: Identifying A/C Compressor Screw
    G10937581Courtesy of MAZDA MOTORS CORP.
  7. Remove the stator.

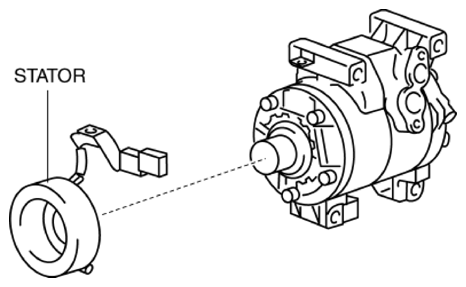

    Fig 5: Identifying Stator
    G10937582Courtesy of MAZDA MOTORS CORP.
