Bolt removal/installation note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

When removing or installing the bolt, lock the A/C compressor pulley against rotation using the following procedure.
1. Connect the M-MDS to the DLC-2.
2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
  1. Select "DataLogger".
  2. ii. Select "Modules".
  3. iii. Select "PCM".
  4. iv. Select "ACCS".
3. Turn the A/C relay on using the "ACCS" simulation function.
Secure the crankshaft pulley.

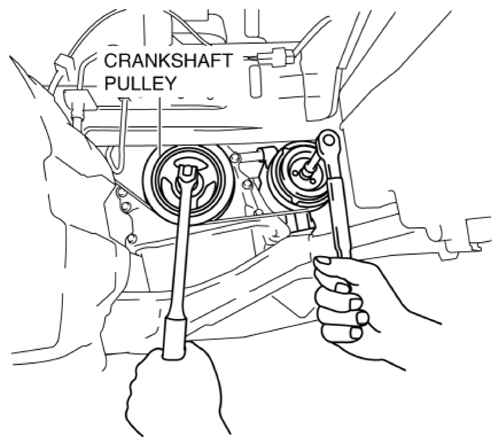

Fig 1: Securing Crankshaft Pulley
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If the crankshaft pulley is rotated with the magnetic clutch turned on, the magnetic clutch turns off. If the bolt is rotated, fix it so that the crankshaft pulley does not rotate.
Remove the bolt with the pressure plate secured.

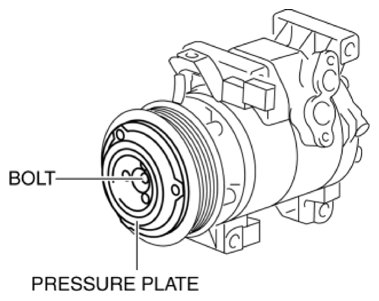

Fig 2: Identifying Pressure Plate And Bolt
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 10-15 N.m {102-152 kgf.cm, 89-132 in.lbf}
NOTE:
- When turning the bolt, if the pulley slips with little friction on the drive belt and A/C compressor pulley, attach a wrench to the hexagon of the drive belt auto tensioner, slowly turn the wrench in the direction shown in the figure, and increase the tension on the drive belt.

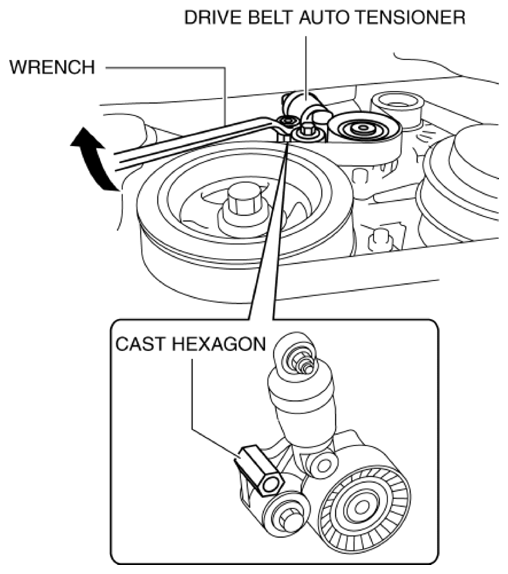

Fig 3: Tightening Drive Belt Auto Tensioner Bolt
Courtesy of MAZDA MOTORS CORP.
Turn the A/C relay off using the "ACCS" simulation function.
