Air Intake Actuator Removal/Installation (Auto A/C)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the air intake actuator connector.

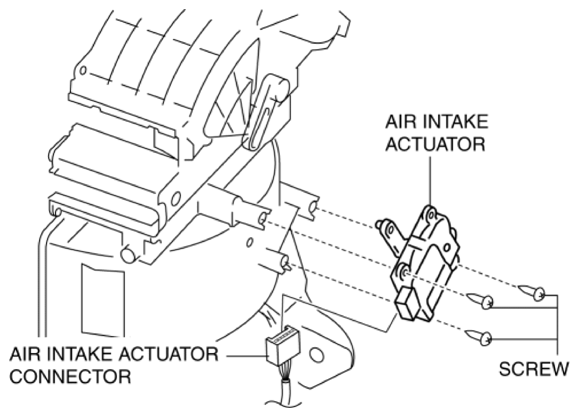

    Fig 1: Identifying Air Intake Actuator, Air Intake Actuator Connector And Screws
    G10937540Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws, then remove the air intake actuator.
  5. Install in the reverse order of removal.
