System Wiring Diagram [Security And Locks]

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

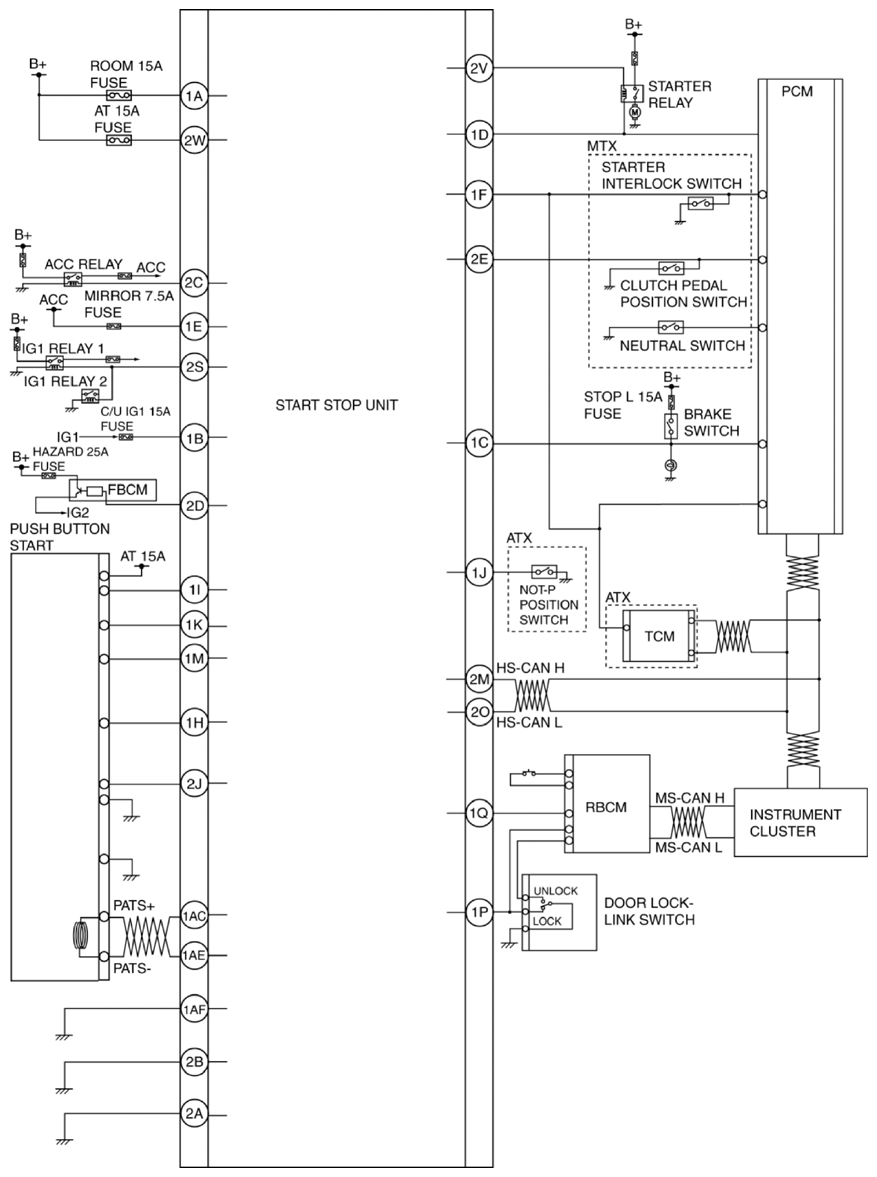

Fig 1: Security And Locks System Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

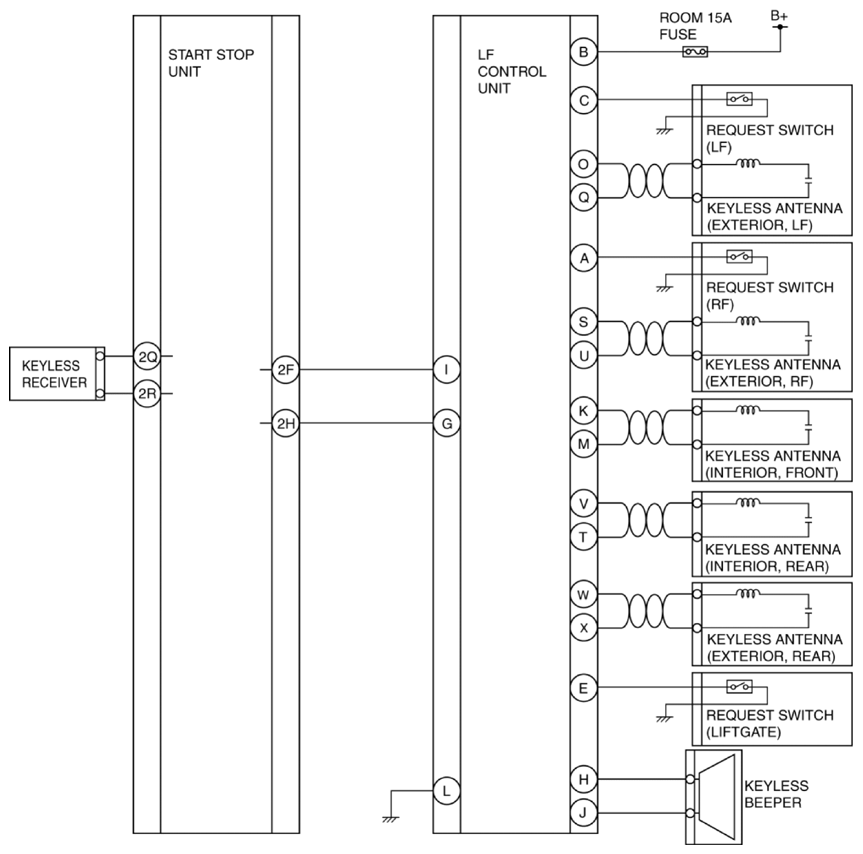

Fig 2: Security And Locks System Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
