Troubleshooting Procedure

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

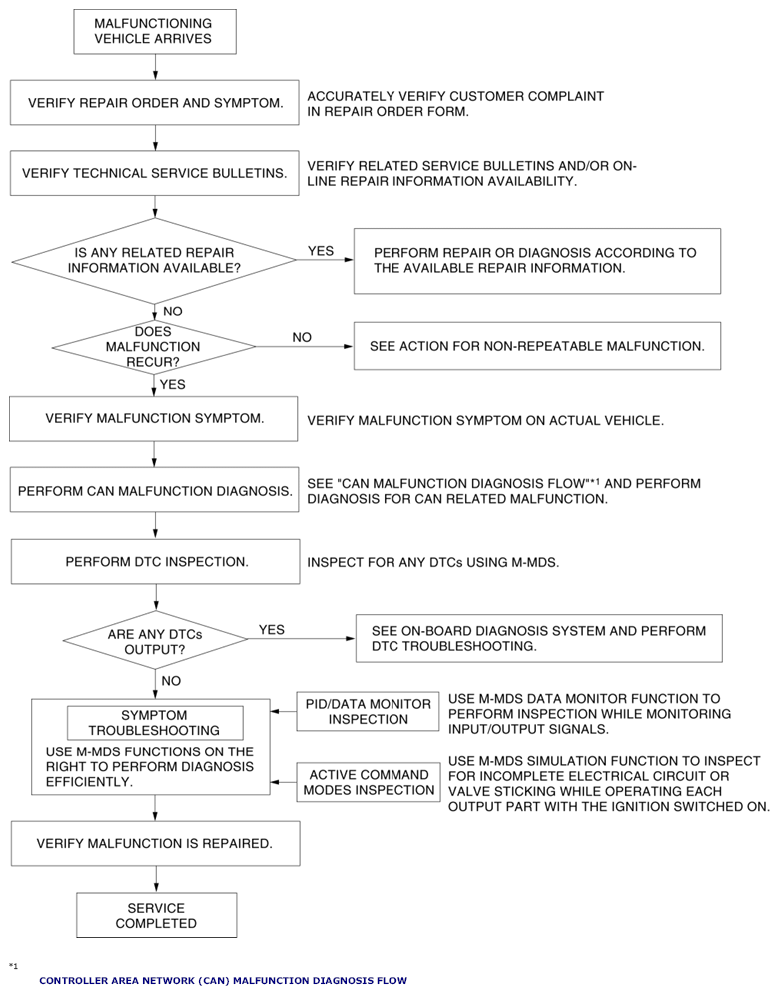

Fig 1: Troubleshooting Procedure Chart
G10939905Courtesy of MAZDA MOTORS CORP.
