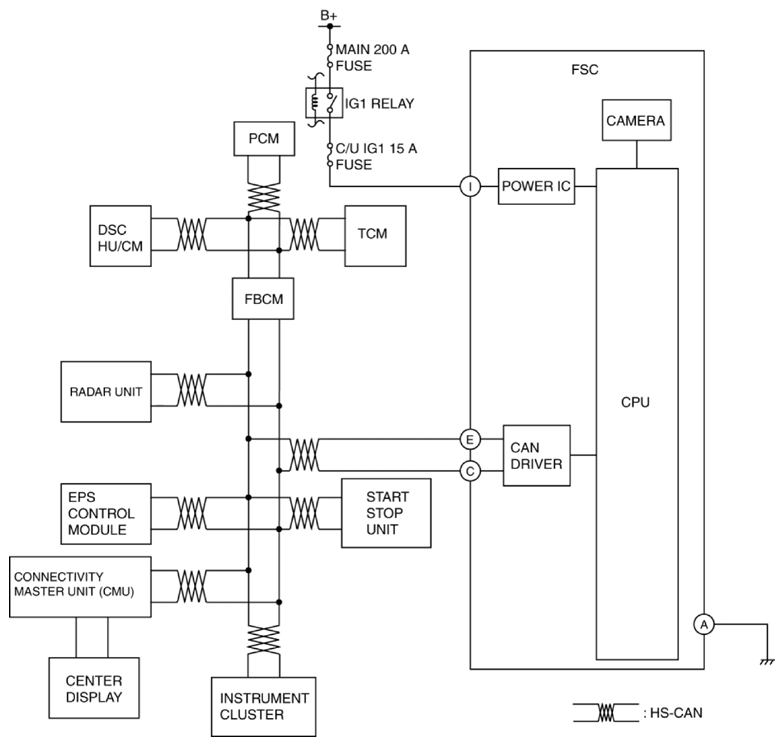

On-Board Diagnostic Wiring Diagram [Forward Sensing Camera (FSC)]

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
