Laser Sensor Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the laser sensor in the order shown in the figure.

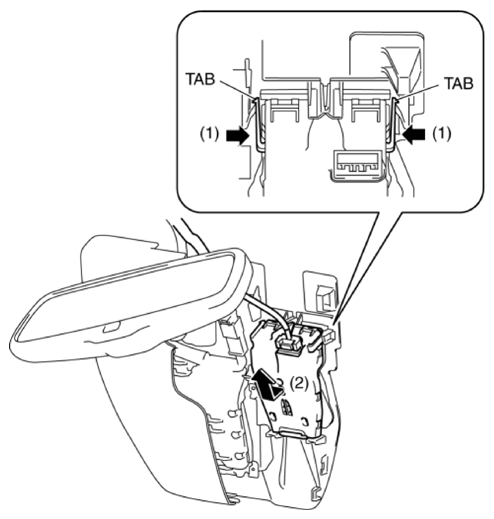

Fig 1: Removing Laser Sensor

Courtesy of MAZDA MOTORS CORP.
