Wheel House Height Measurement Procedure
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

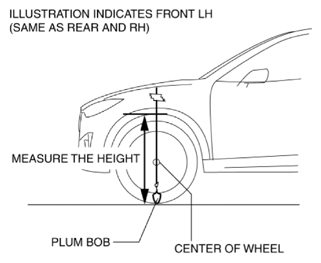

- Adjust the SST (plum bob) so that it crosses the center of the wheel and identify the center position of the wheel house.
Courtesy of MAZDA MOTORS CORP.
- Measure the height from the uppermost part of the wheel house to the floor.
