Adaptive Front Lighting System (AFS) Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

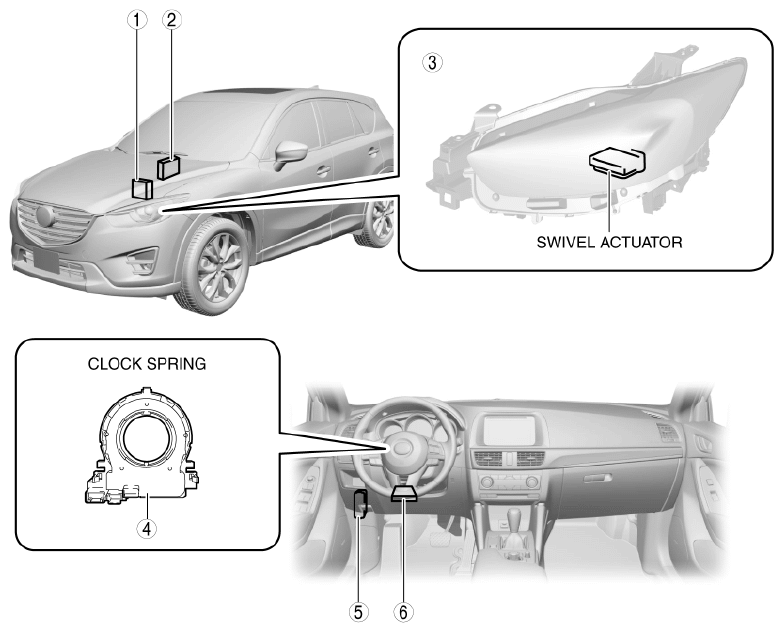

Fig 1: Adaptive Front Lighting System (AFS) Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	PCM (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) (See PCM INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .] (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
2	FBCM (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION .) (See FRONT BODY CONTROL MODULE (FBCM) INSPECTION .) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING AS-BUILT DATA) .)
3	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY .)
4	Steering angle sensor (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION .) (See STEERING ANGLE SENSOR INSPECTION .)
5	AFS control module (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION .) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
6	EPS control module (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .) (See EPS CONTROL MODULE INSPECTION .)
