Rear Window Defogger System Inspection
>>
Manual Air Conditioner
>>
System Wiring Diagram
System Wiring Diagram
WARNING:
This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

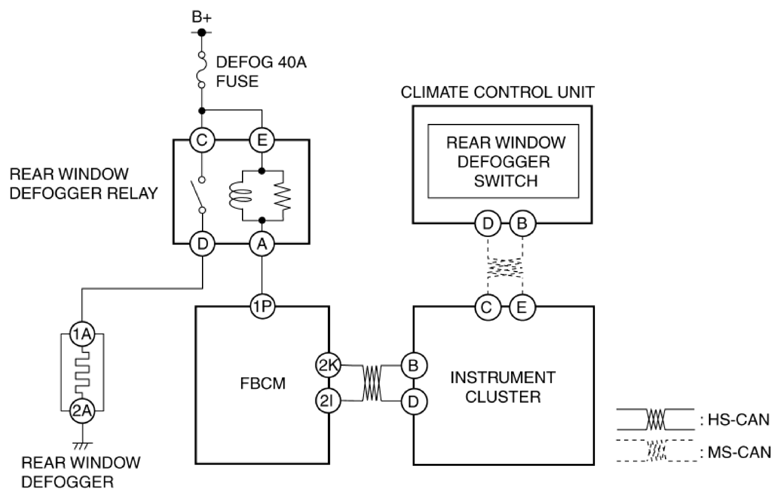

Fig 1: Rear Window Defogger System Wiring Diagram (Manual Air Conditioner)
Courtesy of MAZDA MOTORS CORP.
