Rear Door Glass Run Channel Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear door glass run channel so that the glass guide is aligned with the top of the rear door glass run channel.

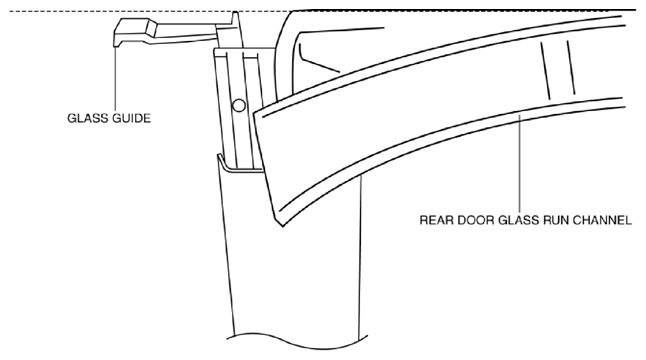

Fig 1: Installing Rear Door Glass Run Channel

Courtesy of MAZDA MOTORS CORP.
