Heated Outer Mirror
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)

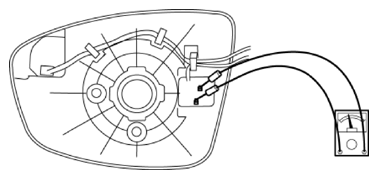

- Verify that the resistance and continuity between the heated outer mirror terminals is as indicated in the chart.
- If not as indicated in the chart, or if the resistance is not within the specification, replace the outer mirror glass.
