Blind Spot Monitoring (BSM) Warning Indicator Light
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)

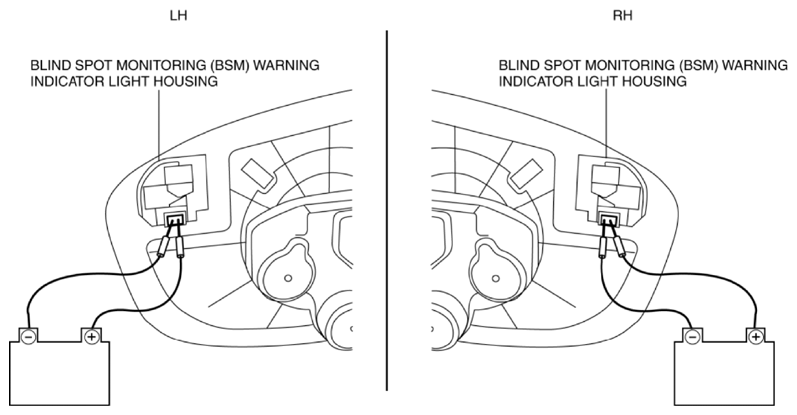

- Connect the battery voltage as shown in the figure.
- If the blind spot monitoring (BSM) warning indicator light does not illuminate, replace the outer mirror glass.
